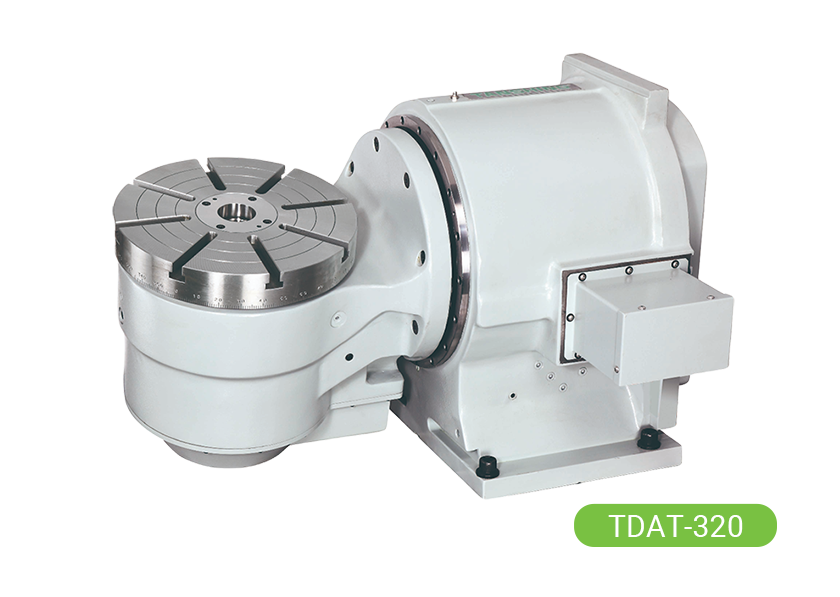

CNC Tilting Rotary Table
TDRT - 125A • 650/TDAT - 255 • 320/TDMT- 650
Feature
  • Direct-drive motor offers high speed running-upto 7 times faster than other ordinary models.
  • Reduction gear not required. Employs a high torque motor for high transmission efficiency. Allows for adopting oil chiller.
  • Encoder equipped for high indexing accuracy.
  • Wholly circular hydraulic clamping for high clamp torque.
  • T
  • DAT
    • -
  • 320
  • □
  1. T：5 axis rotary table
  2. Transmission type
    DAT (Single-arm series)：
    Rotation, Tilting axis → Direct drive motor
    DRT：
    Rotation, Tilting axis → Direct drive motor
    DMT：
    Rotation axis→ Direct drive motor
    Tilting axis→Worm gear
  3. Table diameter
  4. Type
Specifications / Model Unit TDRT-125A TDAT-255 TDAT-320 TDRT-650 TDMT-650
Worktable Diameter mm Ø125 Ø255 Ø320 Ø650 Ø500(600)
Table Height Horizontal mm 375 285 380 － －
Center Height 90° mm 200 220 300 － －
Overall Height 90° mm 369 439 593 － －
Center Bore Diameter mm Ø25H7 Ø50H7 Ø50H7 Ø60H7 Ø50H7
Width Of T-Slot mm 12H7 12H7 14H7 18H7 18H7
Width Of Guide Block mm 14h7 18h7 18h7 － －
Tilting Angle deg. -100°~+100° -100°~+100° -100°~+100° -100°~+110° -100°~+110°
Axial   Rotation Tilting Rotation Tilting Rotation Tilting Rotation Tilting Rotation Tilting
Minimum Input Increment deg. 0.001° 0.001° 0.001° 0.001° 0.001° 0.001° 0.001° 0.001° 0.001° 0.001°
Indexing Accuracy sec. 1※ 1※ 1※ 1※ 1※ 1※ 1※ 1※ 1※ 1※
Repeatability sec. 1※ 1※ 1※ 1※ 1※ 1※ 1※ 1※ 1※ 1※
Direct-Drive Torque Motor ETEL 　 TMB+
0140-070-RA		 TMB+
0210-070-RA		 TMB+
0210-050-RA		 TMB+
0291-070-SA		 TMB+
0210-070-RA		 TMB+
0291-100-UA 		 TMB+
0360-050-TA		 TMB+
0450-150-VB		 TMB+
0360-070-TA		 HEIDENHAIN
QSY-190D
Peak Torque Nm 92.6 318 223 608 318 869 736 3510 990 104
Continuous Torque Nm 55.4 176 122 356 176 529 415 2110 596 38
HEIDENHAIN
Encoders		 　 HEIDENHAIN AND  SIEMENS：
RCN2380(±5Sec.)   RCN2580(±2.5Sec.)
FANUC 　 DiS
60/400-B		 DiS
150/300-B		 DiS
150/300-B		 DiS
300/300-B		 DiS
150/300-B		 DiS
500/250-B		 DiS
1000/200-B		 DiS
1500/100-B		 － －
Peak Torque Nm 130 380 380 600 380 1200 1900 2800 － －
Continuous Torque Nm 65 185 185 270 185 550 840 1400 － －
FANUC
Encoders		   αiCZSensor512A
(±4Sec.)		 αiCZSensor512A
(±4Sec.)		 αiCZSensor512A
(±4Sec.)		 αiCZSensor768A
(±3Sec.)		 αiCZSensor512A
(±4Sec.)		 αiCZSensor768A
(±3Sec.)		 αiCZSensor768A
(±3Sec.)		 αiCZSensor768A
(±3Sec.)		 － －
Speed Reduction Ratio 1/1 1/1 1/1 1/1 1/1 1/1 1/1 1/1 1/1 1/120
Allowable Max. Rotation Speed r.p.m 2※ 2※ 2※ 2※ 2※ 2※ 2※ 2※ 2※ 2※
Pressure (Clamping System) kg/cm2 35 (Hyd.) 35 (Hyd.) 35 (Hyd.) 35 (Hyd.) 35 (Hyd.)
Clamping Torque N.m (kgf.m) 323(33) 833(85) 833(85) 1764(180) 833(85) 1764(180) 3185(325) 4410(450) 3185(325) 4410(450)
Allowable Load Capacity 0°
(Horizontal)
kg 125 125 300 500 500
0°~90°
(Tilting)
kg 50 80 125 300 300
MAX.Thrust Load
(Table is clamped)		 Axial force
N (kgf) 9800(1000) 25000(2551) 30000(3061) 35000(3571) 35000(3571)
Radial moment
N.m (kgf.m) 323(33) 833(85) 833(85) 3185(325) 3185(325)
Tilting moment
N.m (kgf.m) 833(85) 1764(180) 1764(180) 4410(450) 4410(450)
Allowable Inertia Force J=W.D2/8
kg.m2
(kg.cm.sec2)		 0.098(1) 0.65(6.64) 1.6(16.33) 15.8(161.7) 15.8(161.7)
Allowable Workpiece Diameter mm Ø125 Ø255 Ø320 Ø650 Ø650
Net Weight (Motor Excluded) kg 180 350 400 1220 1220
Dimensions

Note：

  1. ※Positioning accuracy according to encoder type.
  2. ※Dependingg on the choice of motor performance,and another high-speed for option; please contact us for more details if necessity.
Dimensions

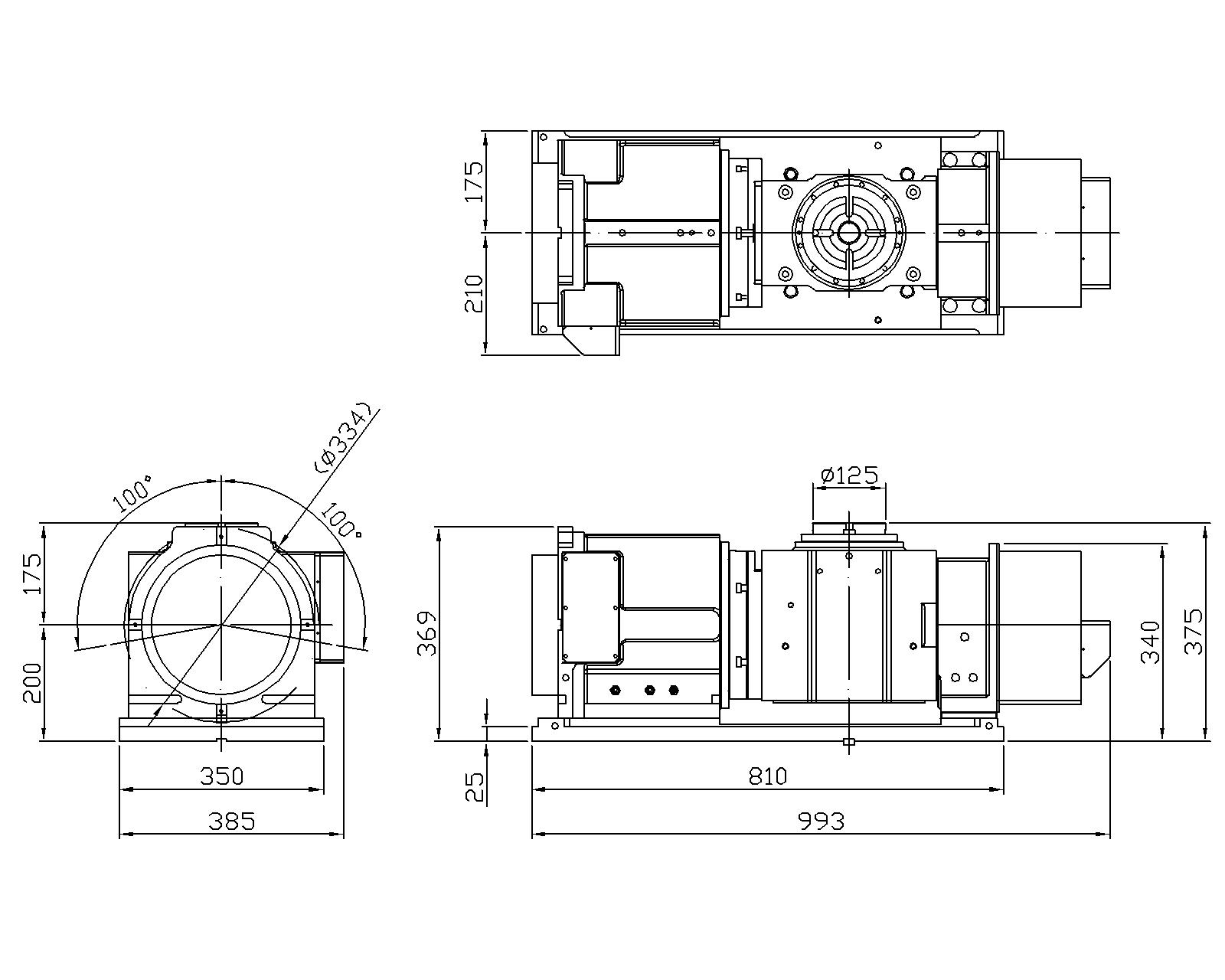

TDRT-125A

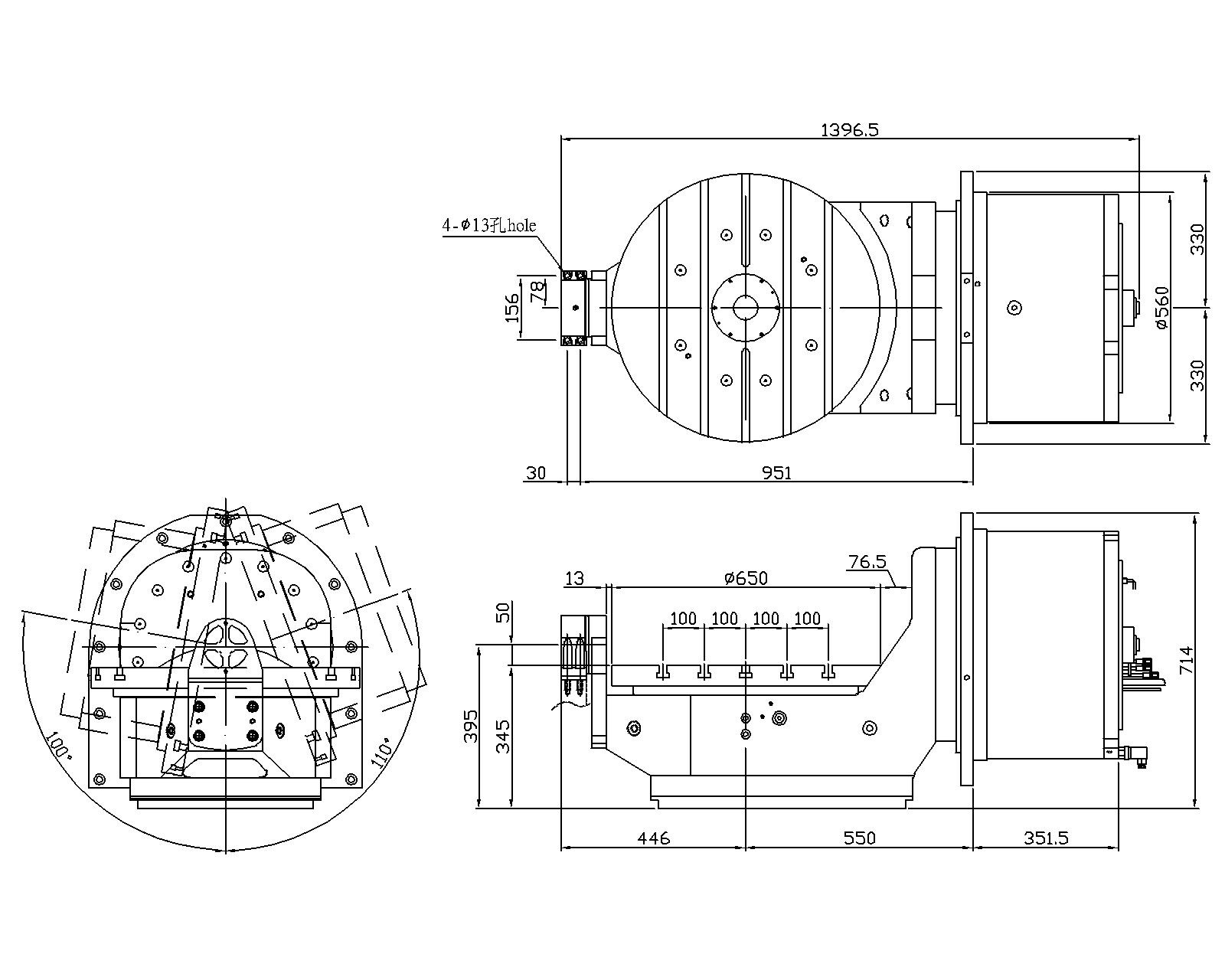

TDRT-650

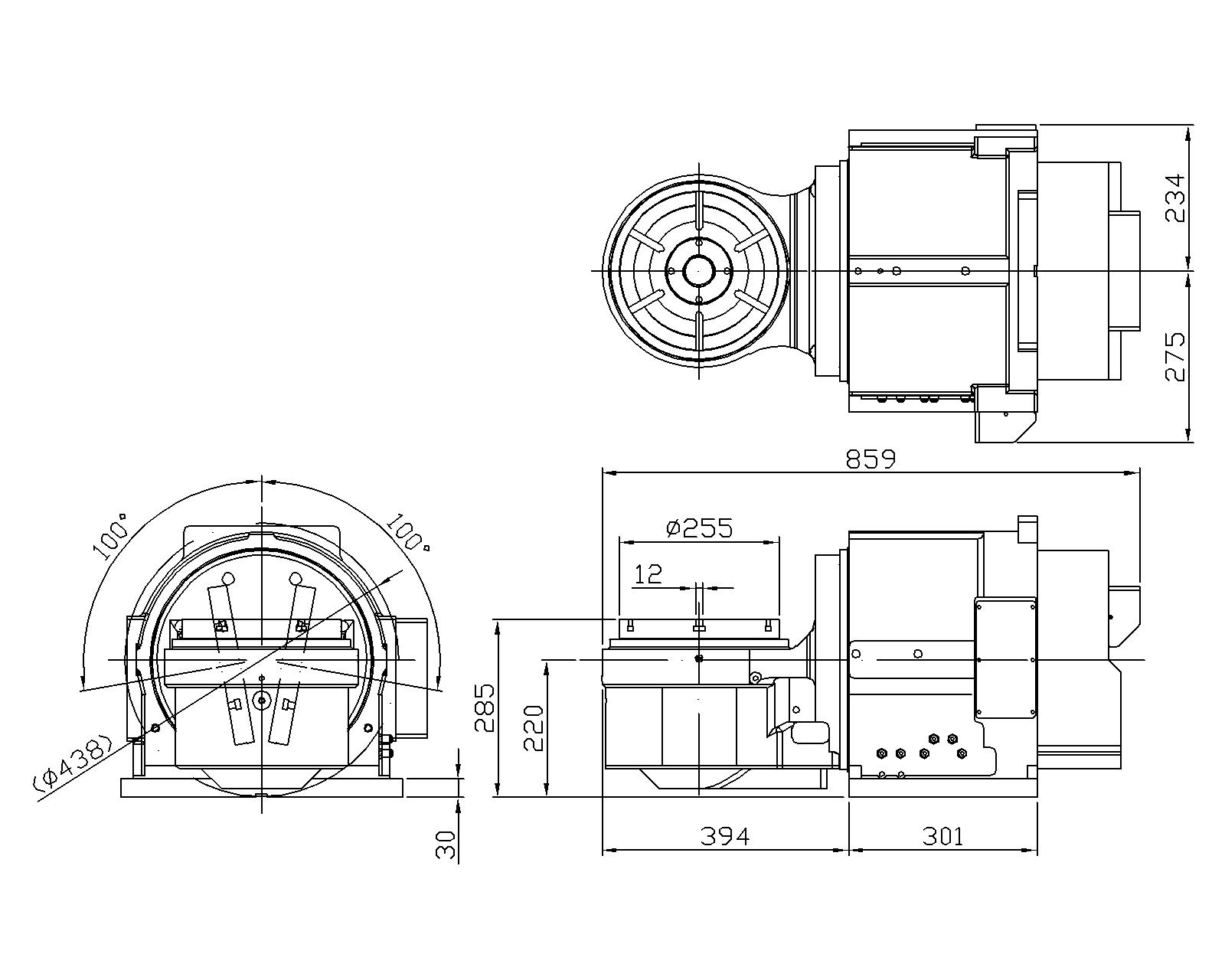

TDAT-255

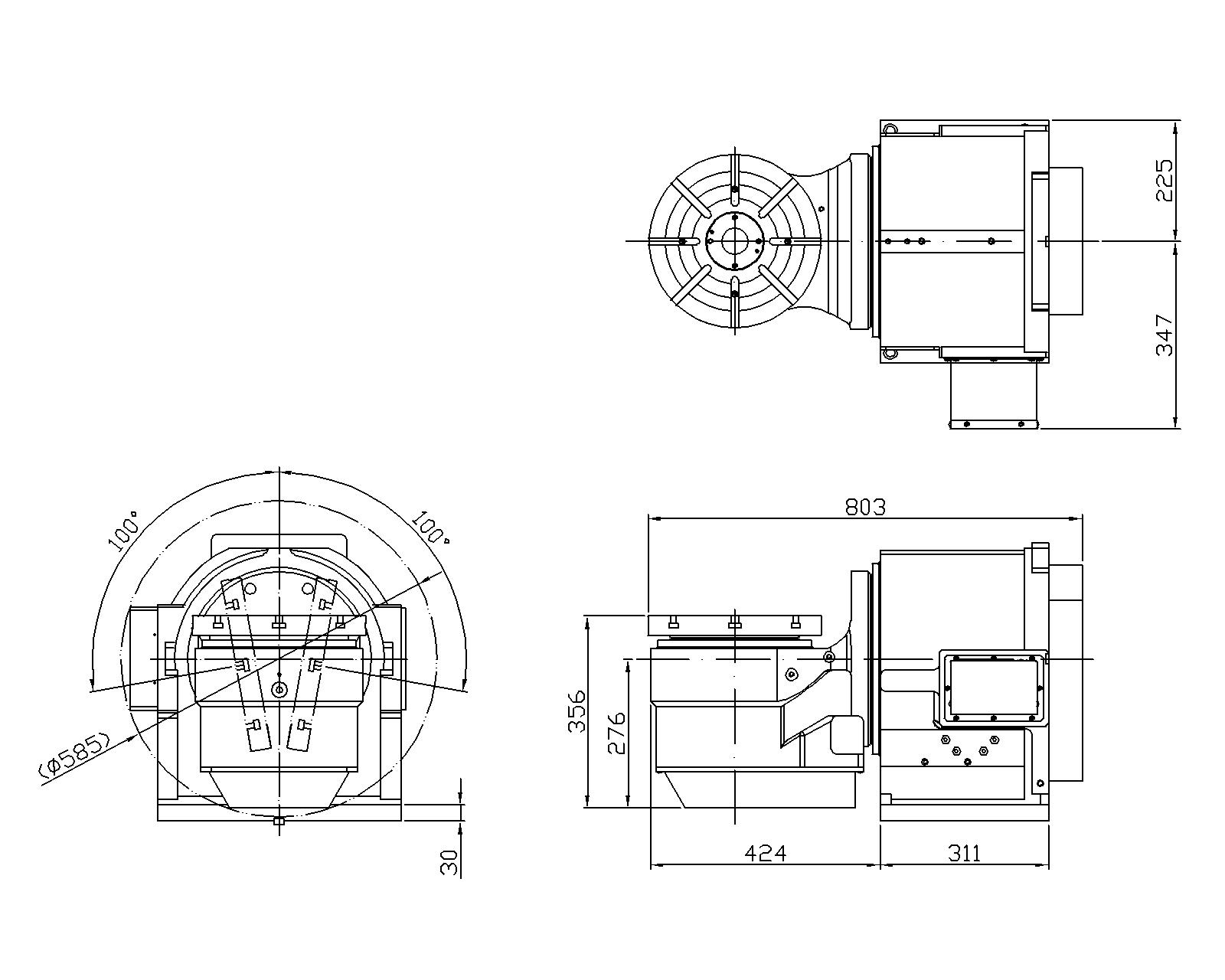

TDAT-320

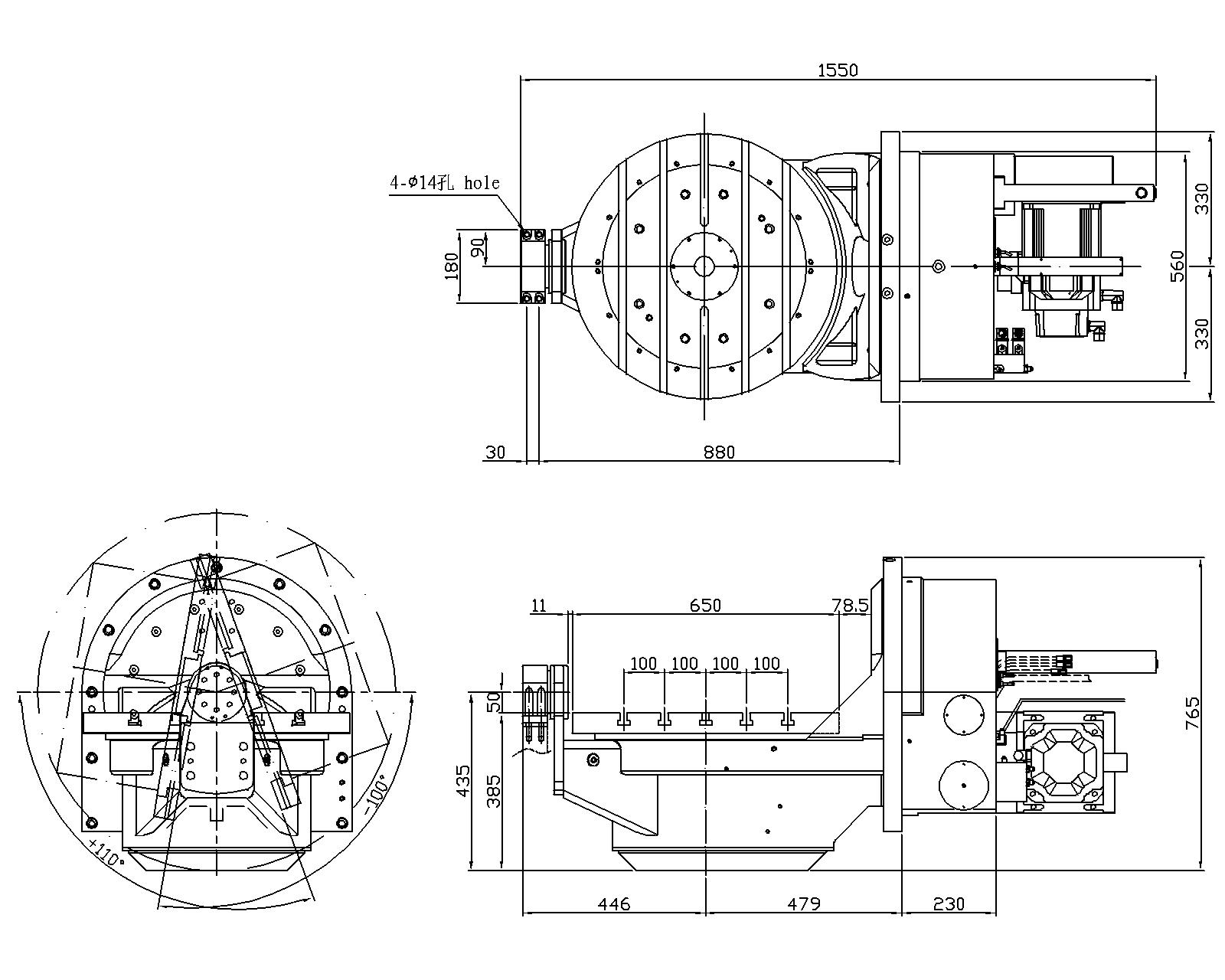

TDMT-650
