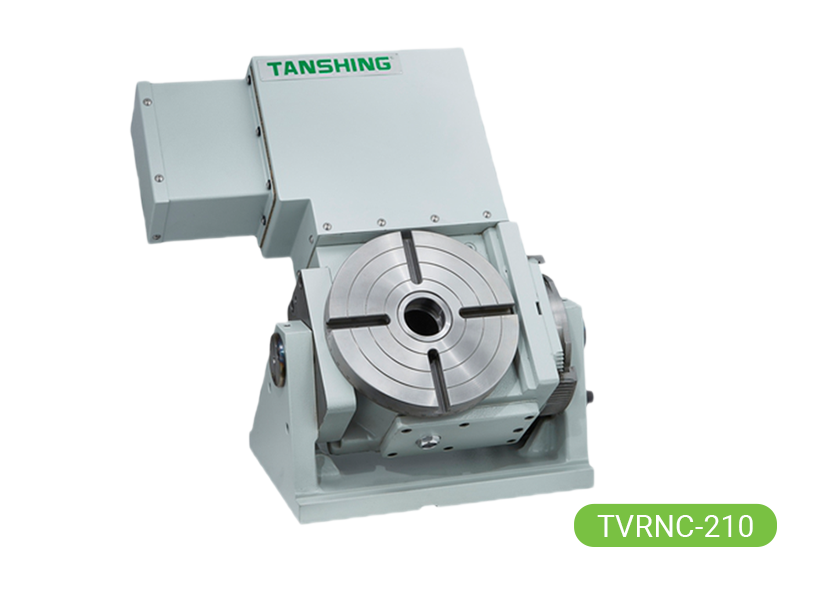

Tanshing TVRNC-125 • 170 • 210 CNC Manual Tilting Rotary Table
CNC Manual Tilting Rotary Table
TVRNC - 125 • 170 • 210
Feature
  • Rotary table diameters Ø125, Ø170, Ø210mm.(Pneumatic clamping).
  • Exclusive dual lead worm drive.
  • Suitable for 4-1/2 axis machining, such as cutting tool machining.
  • Tilting axis is able to be added encoder(special attachments).
  • T
  • VR
  • NC
    • -
  • 210
  1. Manual tilting axis
  2. VR：Pneumatic clamping
  3. Servo control
  4. Table diameter
Specifications / Model Unit TVRNC-125 TVRNC-170 TVRNC-210
Worktable Diameter mm Ø125 Ø170 Ø210
Table Height (F+H) Horizontal mm 219 241 241
Center Height 90° mm 135 166 166
Overall Height 90° mm 435 546 546
Center Bore Diameter mm Ø25H7 Ø35H7 Ø45H7
Through-Hole Diameter mm Ø13 Ø35 Ø45
Width Of T-Slot mm 12H7 12H7 12H7
Width Of Guide Block mm 18h7 18h7 18h7
Tilting Angle deg. 0°~105° 0°~105° 0°~105°
Axial   Rotation Tilting Rotation Tilting Rotation Tilting
Minimum Input Increment deg. 0.001° 1°( degree scale) 0.001° 1°( degree scale) 0.001° 1°( degree scale)
Indexing Accuracy sec. 40" - 20" - 20" -
Repeatability sec. 4" - 4" - 4" -
Servo Motor
(Model As Required)		 FANUC αiF 2 Manual αiF 4 Manual αiF 4 Manual
MITSUBISHI HF/HG-75S HF/HG-104S HF/HG-104S
SIEMENS 1FK7042 1FK7063 1FK7063
HEIDENHAIN QSY-96A QSY116E QSY116E
Speed Reduction Ratio 1/90 - 1/90 - 1/90 -
Max. Table Rotation Speed r.p.m 44.4 - 44.4 - 44.4 -
Allowable Turntable Torque N.m (kgf.m) 83.3(8.5) - 147(15) - 147(15) -
Pressure (Clamping System) kg/cm2 5(Pne.) 5(Pne.) 5(Pne.)
Clamping Torque N.m (kgf.m) 78.4(8) 78.4(8) 156.8(16)
Allowable Load Capacity 0°
(Horizontal)
kg 70 85 100
0°~90°
(Tilting)
kg 40 50 60
MAX.Thrust Load
(Table is clamped)		 Axial force
N (kgf) 9700
(989)		 14000
(1428)		 14000
(1428)
Radial moment
N.m (kgf.m) 78.4
(8)		 78.4
(8)		 156.8
(16)
Tilting moment
N.m (kgf.m) 440
(45)		 980
(100)		 980
(100)
Allowable Inertia Force J=W.D2/8
kg.m2
(kg.cm.sec2)		 0.14
(1.4)		 0.3
(3.1)		 0.55
(5.6)
Net Weight (Motor Excluded) kg 70 78 88

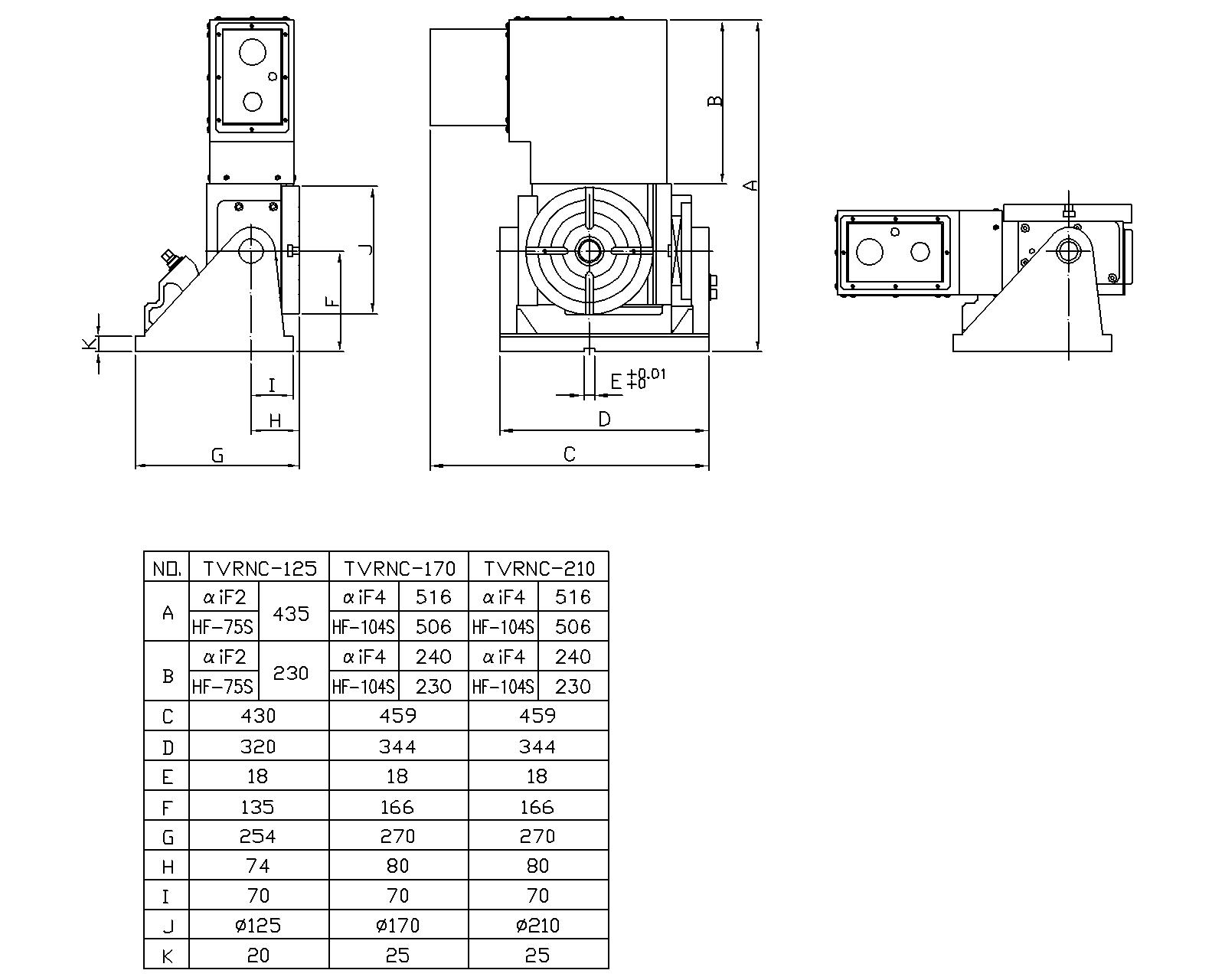

Dimensions
Dimensions
TVRNC

Unit：mm

NO. TVRNC-125 TVRNC-170 TVRNC-210
A αiF 2 435 αiF 4 516 αiF 4 516
HF-75S HF-104S 506 HF-104S 506
B αiF 2 230 αiF 4 240 αiF 4 240
HF-75S HF-104S 230 HF-104S 230
C 430 459 459
D 320 344 344
E 18 18 18
F 135 166 166
G 254 270 270
H 74 80 80
I 70 70 70
J Ø125 Ø170 Ø210
K 20 25 25
