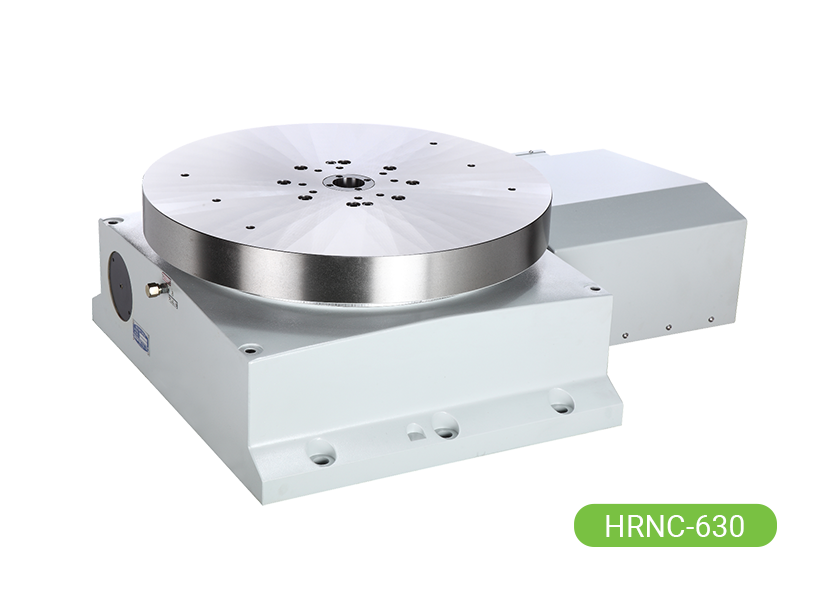

Tanshing Horizontal Rotary Table
CNC Rotary Table
HRNC - 500S • 630S • 800S • 1000C • 1650
Feature
  • Worktable diameter Ø500, Ø630, Ø800, Ø1000, Ø1650mm.(Horizontal application)
  • Dual lead worm drive for greater transmission torque.
  • Hydraulic clamping system assures powerful clamping.
  • Minimum increment 0.001°.
  • H
  • R
  • NC
    • -
  • 630
    • -
  • □
    • -
  • □
    • -
  • □
  1. Hydraulic system
    Horizontal applications
  2. 0.001° Positioning
  3. Servo control
  4. Table size
  5. Table form
    S：Square
    None：round
  6. Transmission
    B：Driven by belt
    G：Driven by gear
  7. lnterface type
    AT：Flat bottom
    BT：Boxway
    CT：Linear
Specifications / Model Unit HRNC-500S-□-□ HRNC-630S-□-□ HRNC-800S-□-□ HRNC-1000C-□-□ HRNC-1650-□-□
Application Machine Type   Horizontal square table Horizontal square table Horizontal square table Horizontal disc Horizontal disc
Worktable Diameter mm 500x500 630x630 800x800 Ø1000 Ø1650
Overall Height mm 300 320 360 400 449
Center Bore Diameter mm Ø50H7 Ø50H7 Dep.30 Ø50H7 Dep.28 Ø50H7 Dep.31 Ø75H7 Dep.31
Through-Hole Diameter mm Ø50 － － － －
Width Of T-Slot mm 18H7 18H7 18H7 22H7 22H7
Width Of Guide Block mm － － 18h7 22h7 22h7
Minimum Input Increment deg. 0.001° 0.001° 0.001° 0.001° 0.001°
Indexing Accuracy sec. 15" 15" 15" 15"   15"
★10"
Repeatability sec. 4" 4" 4" 4" 4"
Servo Motor
(Model As Required)		 FANUC αiF 12   αiF 12
◆αiF 22		 αiF 22 αiF 30 αiF 22
MITSUBISHI HF/HG-204S HF/HG-204S HF/HG-354S HF/HG-453S HF/HG-354S
SIEMENS 1FK7083 1FK7083 1FK7101 1FK7103 1FK7101
HEIDENHAIN QSY155B QSY155B QSY155D QSY190C QSY155D
Speed Reduction Ratio 1/180 1/180 1/180 1/360 1/720
Max. Table Rotation Speed r.p.m 16.6 11.1 11.1 5.5 2.7
Allowable Turntable Torque N.m (kgf.m) 2450(250) 4116(420) 7840(800) 13230(1350) 14000(1428)
Pressure (Clamping System) kg/cm2 35 (Hyd.) 35 (Hyd.) 35 (Hyd.) 35 (Hyd.) 35 (Hyd.)
Clamping Torque N.m (kgf.m) 2450(250) 4410(450) 6860(700) 14700(1500) 9800(1000)
Allowable Load Capacity Horizontal
kg 500 800 3000 5000 8000
MAX.Thrust Load
(Table is clamped)		 Axial force
N (kgf) 39200
(4000)		 49000
(5000)		 49000
(5000)		 100000
(10204)		 185000
(18878)
Radial moment
N.m (kgf.m) 2450
(250)		 4410
(450)		 6860
(700)		 14700
(1500)		 9800
(1000)
Tilting moment
N.m (kgf.m) 2450
(250)		 7840
(800)		 11600
(1184)		 22900
(2337)		 22900
(2337)
Allowable Inertia Force J=W.D2/8
kg.m2
(kg.cm.sec2)		 16
(160)		 50
(506)		 240
(2450)		 625
(6380)		 2773
(27780)
Net Weight (Motor Excluded) kg 538 700 1200 2000 4100
Dimensions

Note：

  1. There are circle and square of worktable for choice or depend on design from customer's requirement.
  2. "★"Means with encoder of HEIDENHAIN RCN-2XXXX(±5") series.
  3. "◆"Means recommend.
Dimensions

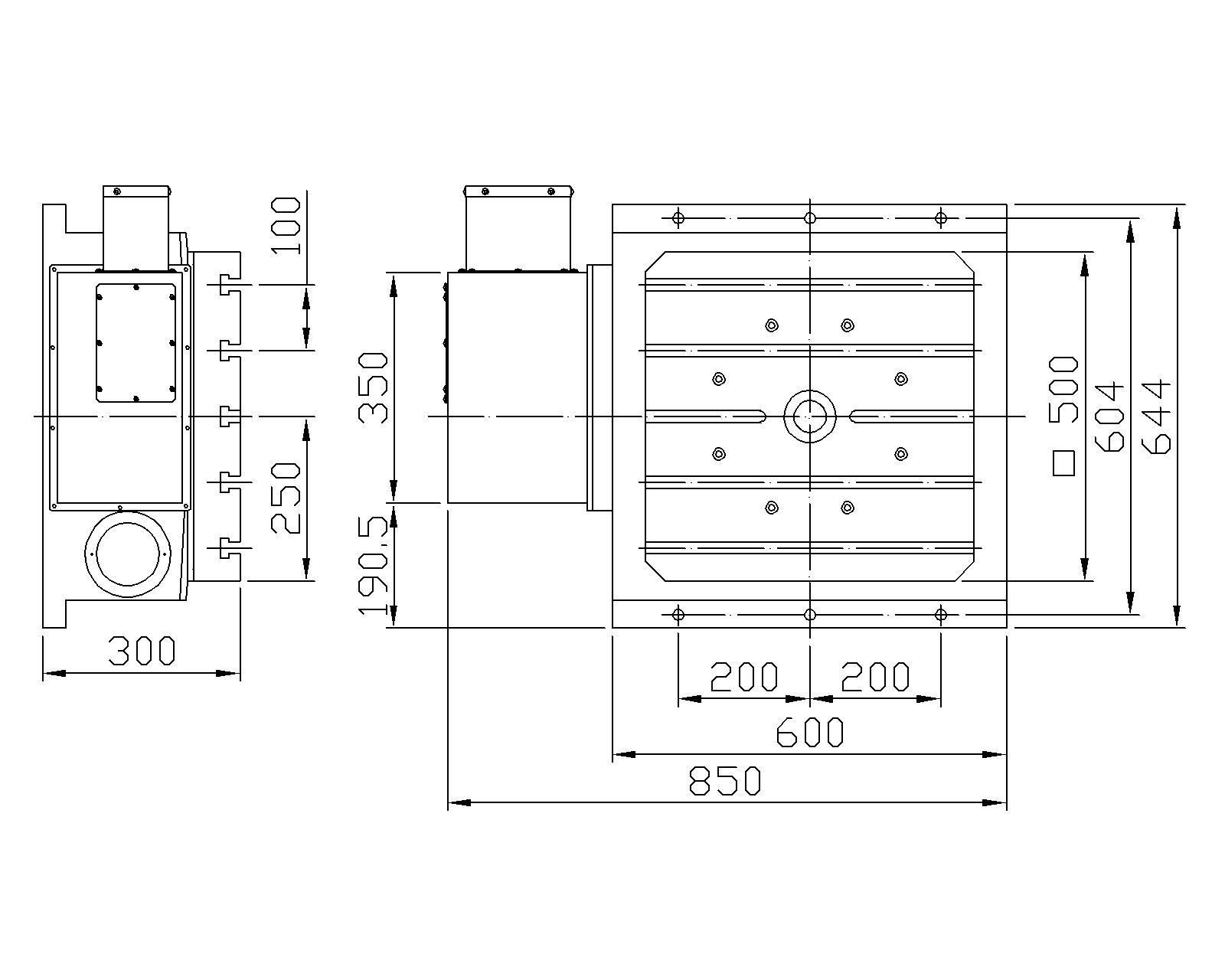

HRNC-500S-G-AT

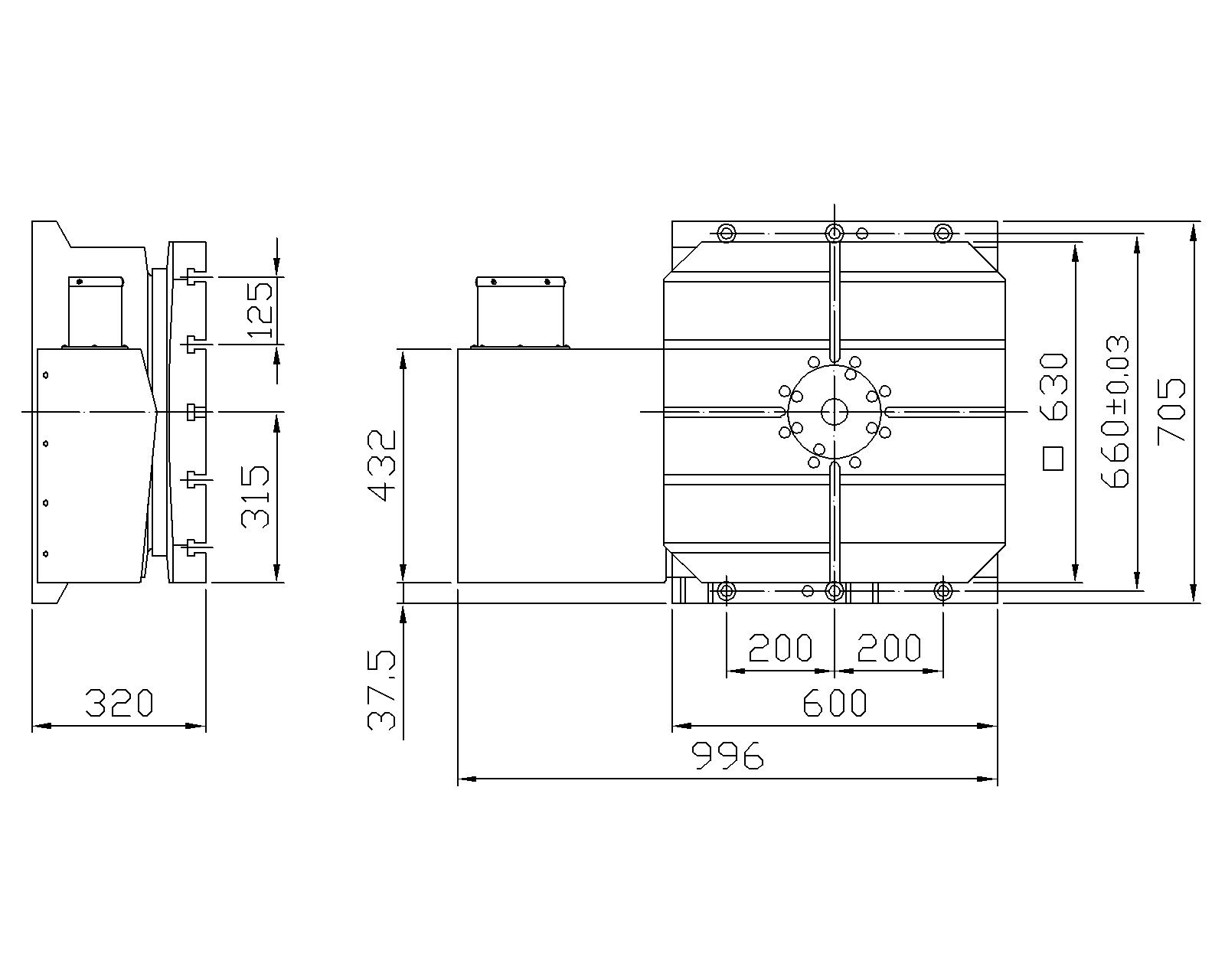

HRNC-630S-G-AT

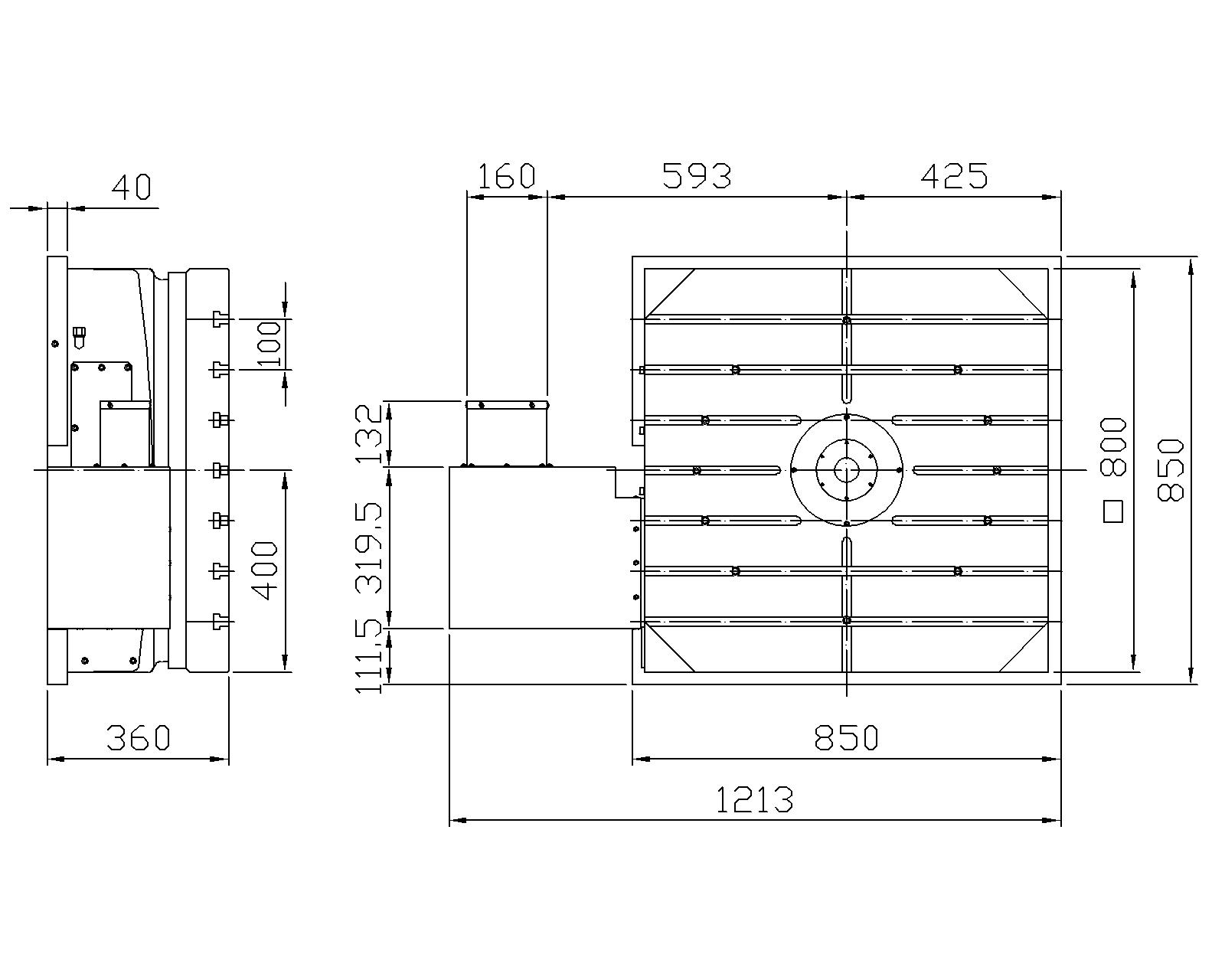

HRNC-800S-G-AT

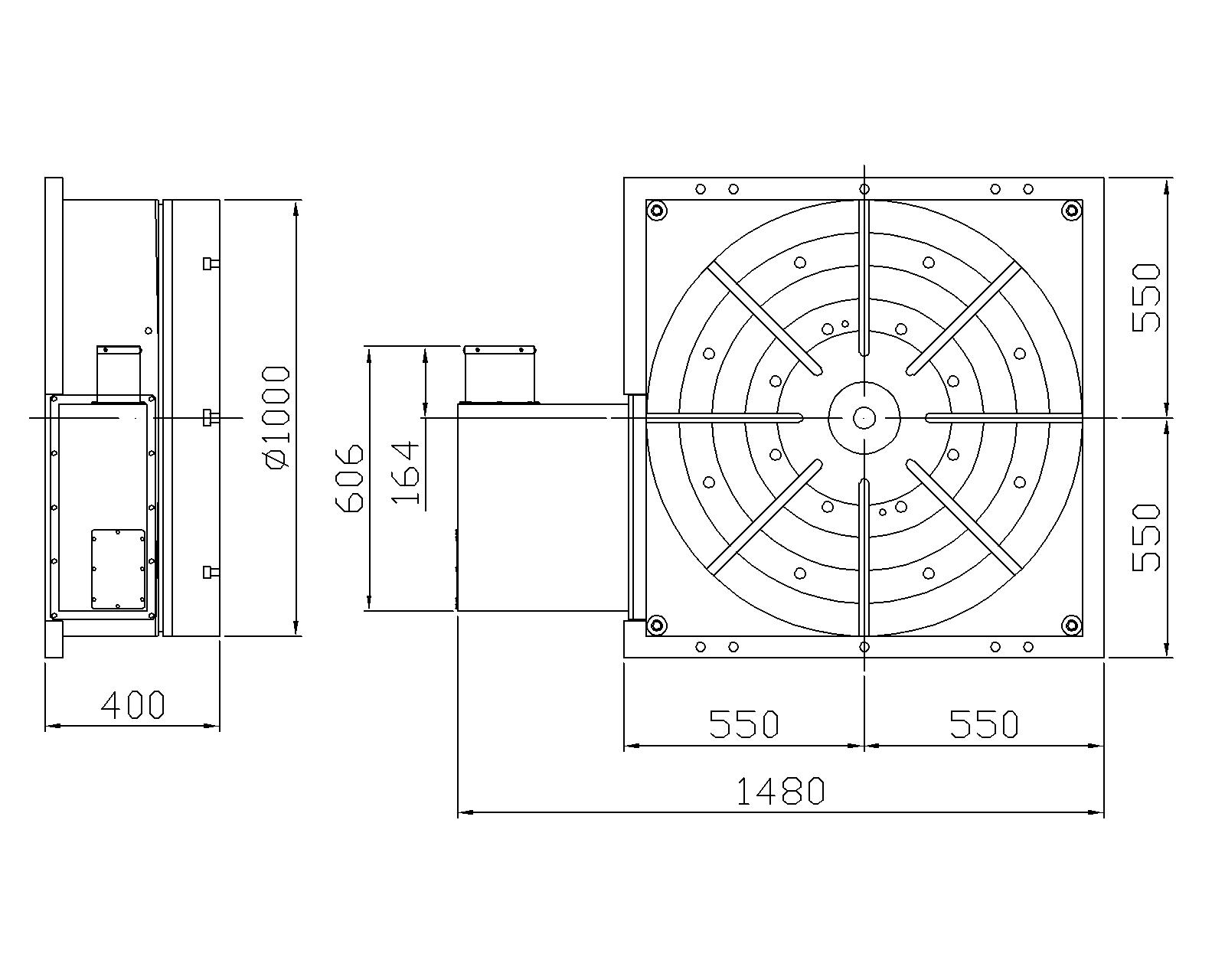

HRNC-1000C-G-AT

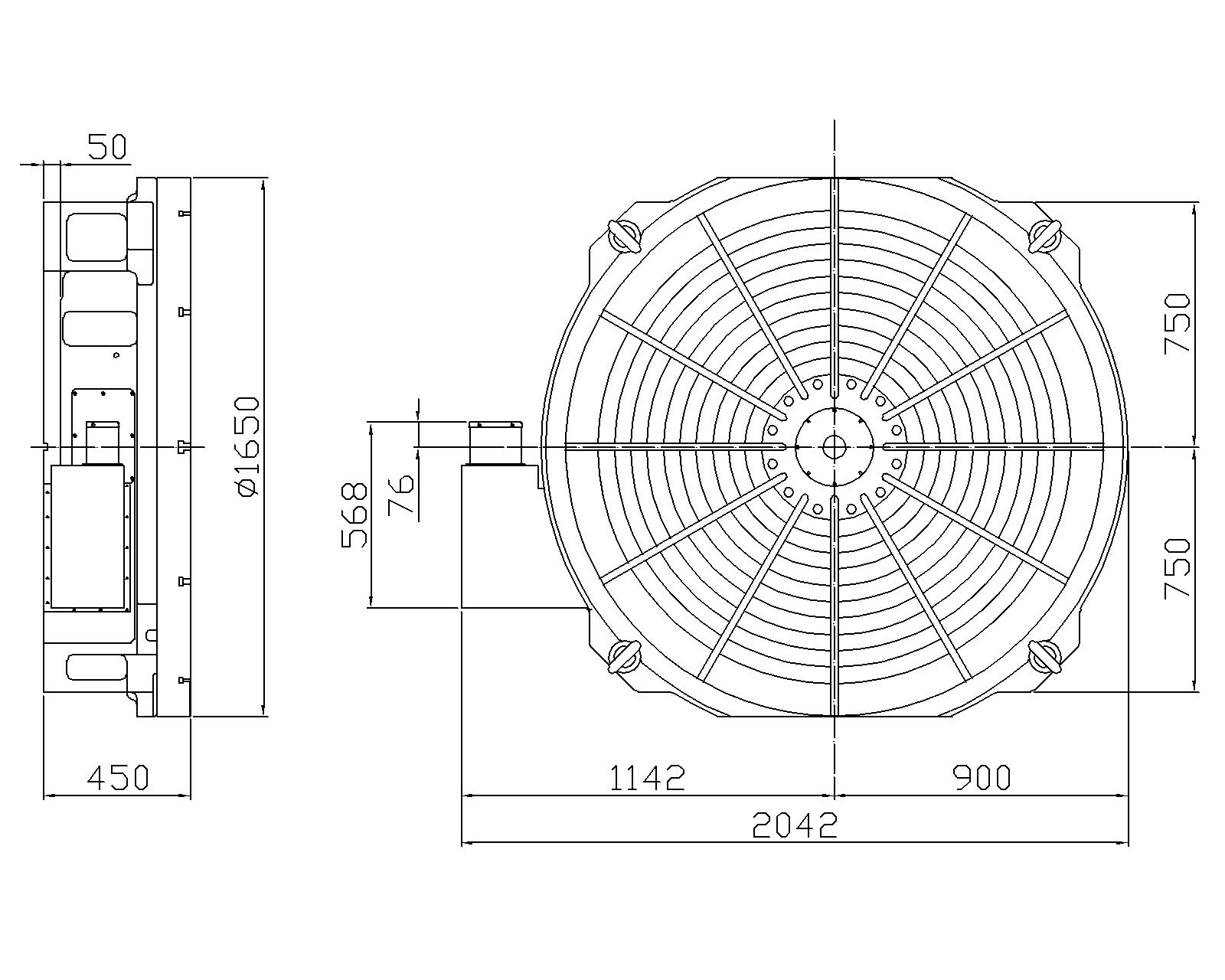

HRNC-1650-G-AT
