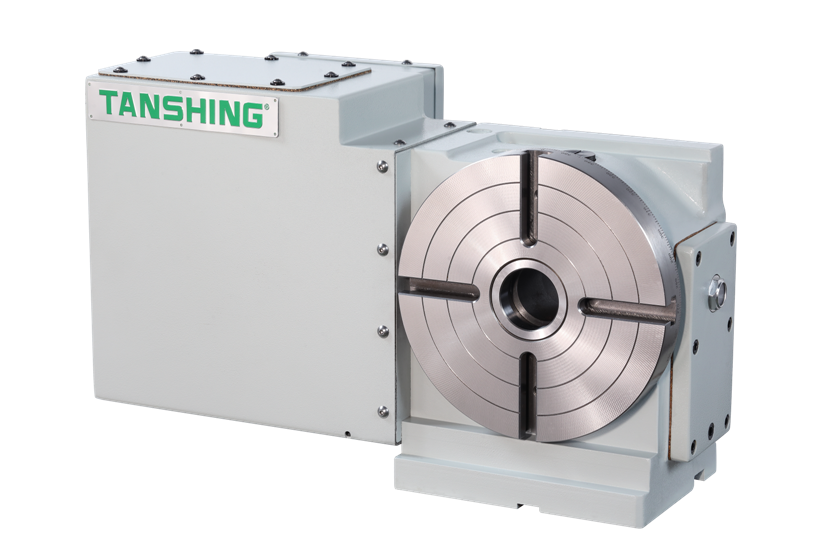

CNC Rotary Table
VRNC - A125-L • 170-L • 210-L
Feature
  • Worktable diameter Ø125, Ø170, Ø210mm.
  • Motor is mounted at the left. ( Vertical & Horizontal applications )
  • Employs high precision cross roller bearings.
  • Exclusive dual lead worm drive.
  • Air operated.

Employs high precision cross roller bearings

  • V
  • R
  • NC
    • -
  • 210
    • -
  • L
  1. Pneumatic system
  2. 0.001° Positioning
  3. Servo control
  4. Table diameter
  5. Motor position
    L：Left-handed
Specifications / Model Unit VRNC-A125-L VRNC-170-L VRNC-210-L
Worktable Diameter mm Ø125 Ø170 Ø210
Table Height Horizontal mm 160 152 152
Center Height Vertical mm 110 135 160
Center Bore Diameter mm Ø30H7 Ø35H7 Ø45H7
Through-Hole Diameter mm Ø30 Ø35 Ø45
Width Of T-Slot mm 12H7 12H7 12H7
Width Of Guide Block mm 14h7 18h7 18h7
Minimum Input Increment deg. 0.001° 0.001° 0.001°
Indexing Accuracy sec. 40" 20" 20"
Repeatability sec. 4" 4" 4"
Servo Motor
(Model As Required)		 FANUC αiF 2 αiF 4 αiF 4
MITSUBISHI HF/HG-75S HF/HG-104S HF/HG-104S
SIEMENS 1FK7042 1FK7060 1FK7060
HEIDENHAIN QSY96A QSY116C QSY116C
Speed Reduction Ratio 1/90 1/90 1/90
Max. Table Rotation Speed r.p.m 44.4 44.4 44.4
Allowable Turntable Torque N.m (kgf.m) 83.3(8.5) 147(15) 147(15)
Pressure (Clamping System) kg/cm2 5(Pne.) 5(Pne.) 5(Pne.)
Clamping Torque N.m (kgf.m) 78.4(8) 78.4(8) 156.8(16)
Allowable Load Capacity Vertical
kg 50 75 75
Horizontal
kg 100 150 150
With Tail-Stock
kg 100 150 150
MAX.Thrust Load
(Table is clamped)		 Axial force
N (kgf) 9700
(989)		 14000
(1428)		 14000
(1428)
Radial moment
N.m (kgf.m) 78.4
(8)		 78.4
(8)		 156.8
(16)
Tilting moment
N.m (kgf.m) 410
(41.8)		 1020
(104)		 1020
(104)
Allowable Inertia Force J=W.D2/8
kg.m2
(kg.cm.sec2)		 0.2
(1.99)		 0.54
(5.5)		 0.83
(8.4)
Net Weight (Motor Excluded) kg 32 47 55
Dimensions

Note：

  1. Choice of connector location at side, top or back of the rotary table.
  2. The length of servo motor guard plate varies with different servo motors.
Dimensions

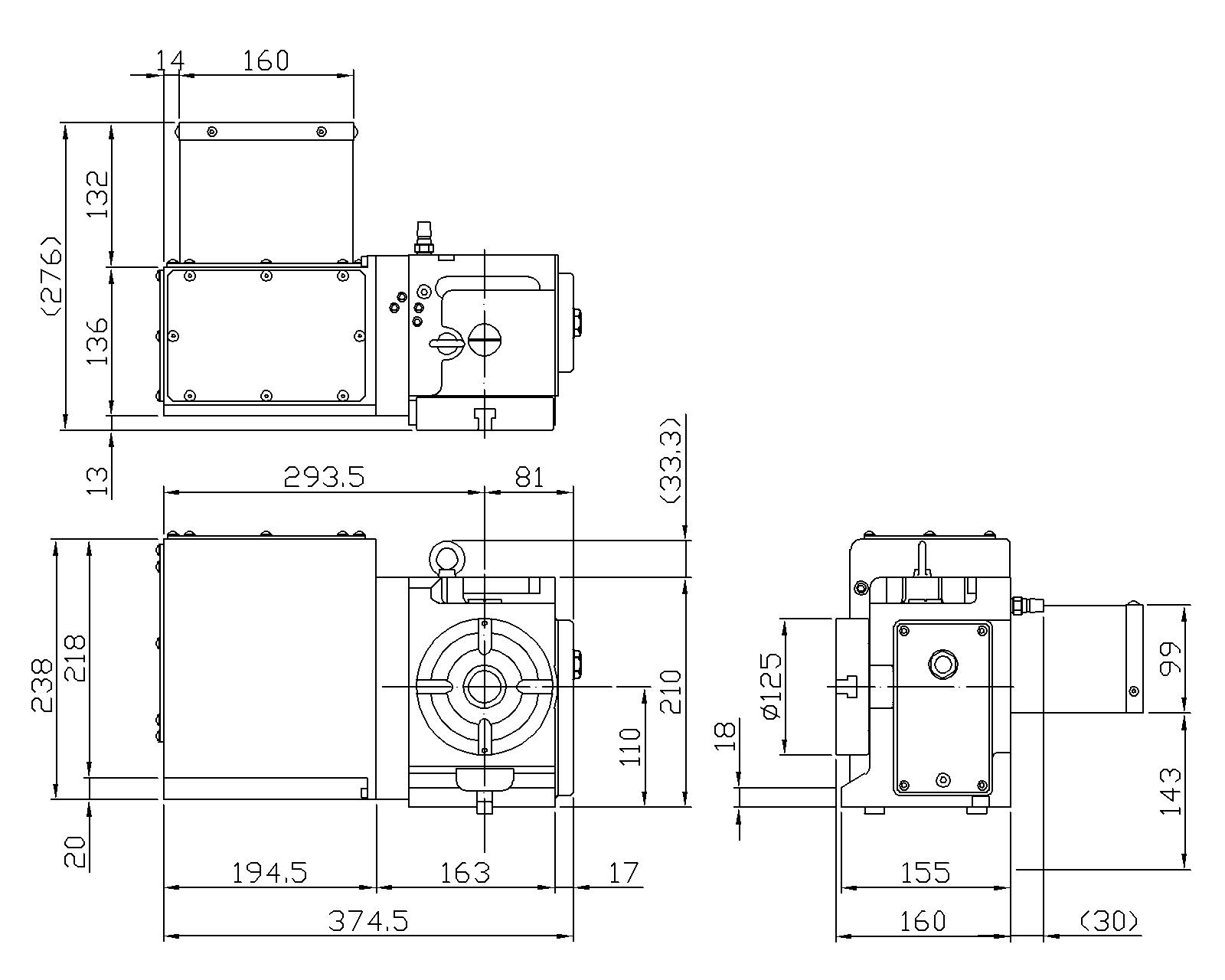

VRNC-A125-L

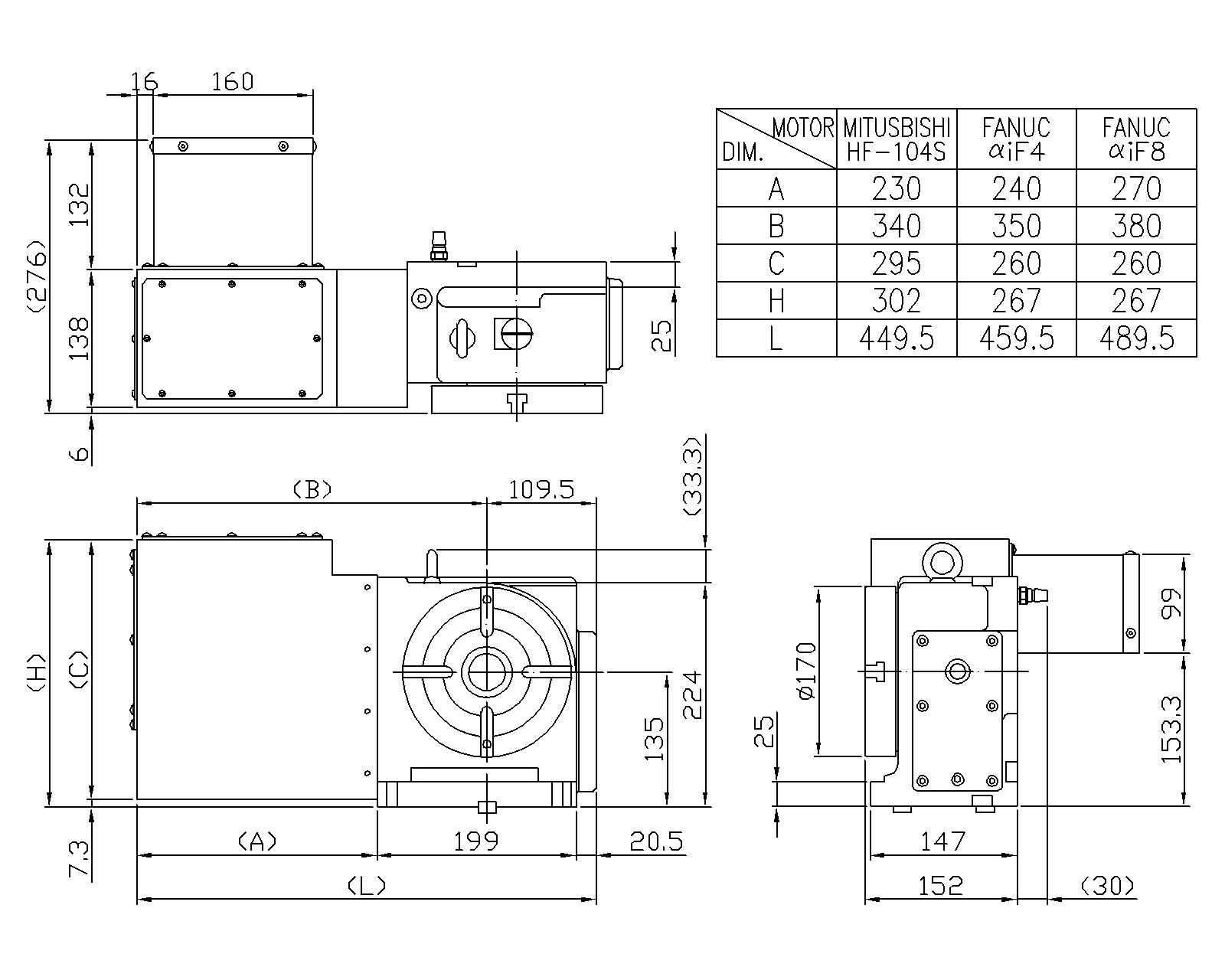

VRNC-170-L

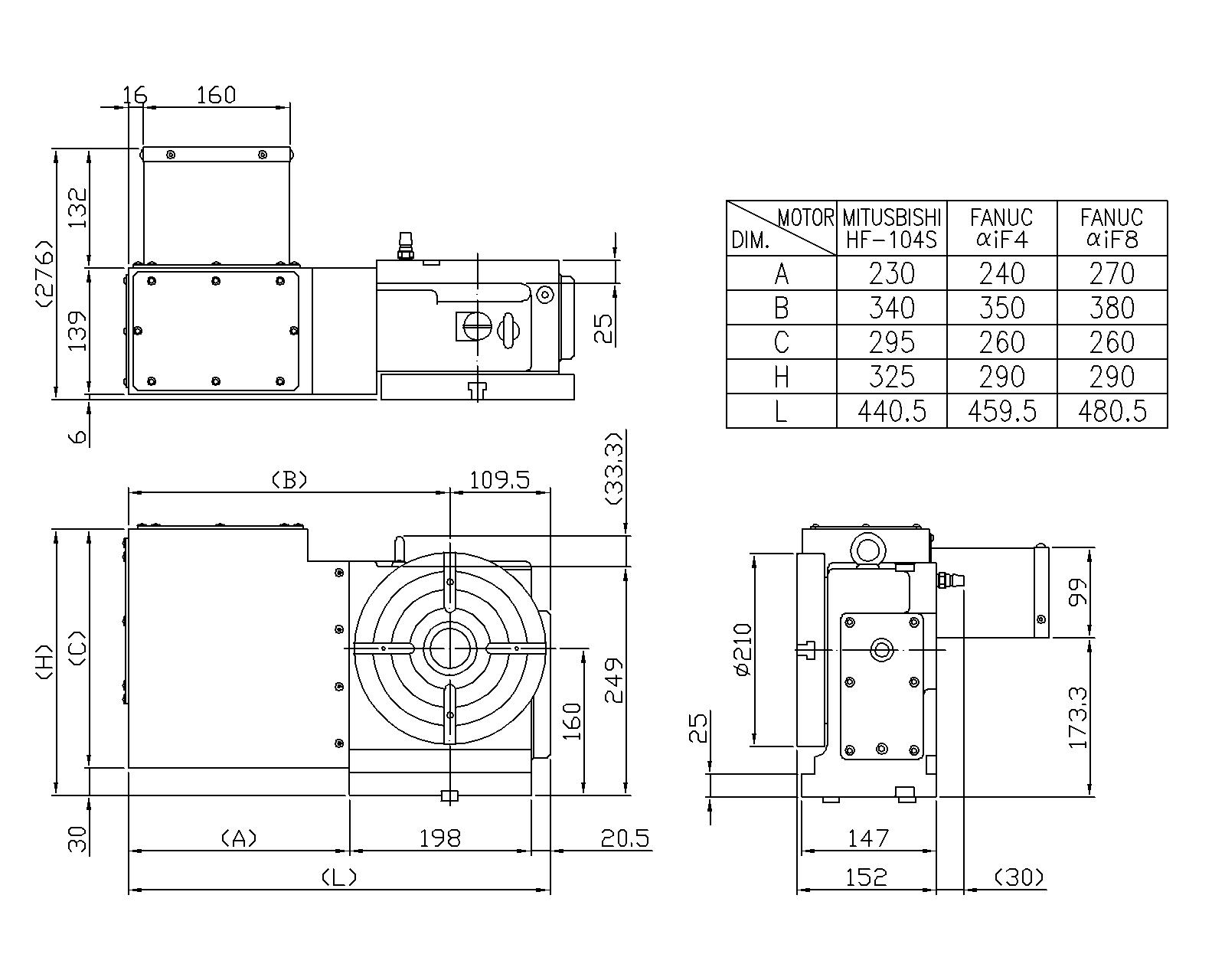

VRNC-210-L
Back
