CNC Manual Tilting Rotary Table
TMRNC - 255 • 320 • 400


  • Rotary table diameters Ø255, Ø320, Ø400mm.(Hydraulic clamping).
  • Exclusive dual lead worm drive.
  • Suitable for 4-1/2 axis machining, such as cutting tool machining.
  • Tilting axis is able to be added encoder(special attachments).
  • T
  • MR
  • NC
    • -
  • 225
  1. Manual tilting axis
  2. MR：Hydraulic clamping
  3. Servo control
  4. Table diameter
Specifications / Model Unit TMRNC-255 TMRNC-320 TMRNC-400
Worktable Diameter mm Ø255 Ø320 Ø400
Table Height Horizontal mm 230 380 375
Center Height 90° mm 210 270 310
Overall Height 90° mm 565 811 764
Center Bore Diameter mm Ø40H7 Ø40H7 Ø40H7
Through-Hole Diameter mm Ø33 Ø40 Ø40
Width Of T-Slot mm 12H7 14H7 14H7
Width Of Guide Block mm 18h7 18h7 18h7
Tilting Angle deg. 0°~105° 0°~105° 0°~105°
Axial   Rotation Tilting Rotation Tilting Rotation Tilting
Minimum Input Increment deg. 0.001° 1°( degree scale) 0.001° 1°( degree scale) 0.001° 1°( degree scale)
Indexing Accuracy sec. 15" - 15" - 15" -
Repeatability sec. 4" - 4" - 4" -
Servo Motor
(Model As Required)		 FANUC αiF 8 Manual αiF 12 Manual αiF 12 Manual
MITSUBISHI HF/HG-154S HF/HG-204S HF/HG-204S
SIEMENS 1FK7063 1FK7083 1FK7083
HEIDENHAIN QSY116J QSY155B QSY155B
Speed Reduction Ratio 1/180 - 1/180 - 1/180 -
Max. Table Rotation Speed r.p.m 22.2 - 16.6 - 16.6 -
Allowable Turntable Torque N.m (kgf.m) 470(48) - 764(78) - 1666(170) -
Pressure (Clamping System) kg/cm2 35 (Hyd.) - 35 (Hyd.) - 35 (Hyd.) -
Clamping Torque N.m (kgf.m) 490(50) - 833(85) - 1764(180) -
Allowable Load Capacity 0°
(Horizontal)
kg 150 200 300
0°~90°
(Tilting)
kg 80 130 150
MAX.Thrust Load
(Table is clamped)		 Axial force
N (kgf) 13720
(1400)		 16660
(1700)		 19600
(2000)
Radial moment
N.m (kgf.m) 490
(50)		 833
(85)		 1764
(180)
Tilting moment
N.m (kgf.m) 833
(85)		 1078
(110)		 1764
(180)
Allowable Inertia Force J=W.D2/8
kg.m2
(kg.cm.sec2)		 1.2
(12.4)		 2.56
(26.1)		 6
(61.2)
Net Weight (Motor Excluded) kg 130 230 330
Dimensions
Dimensions

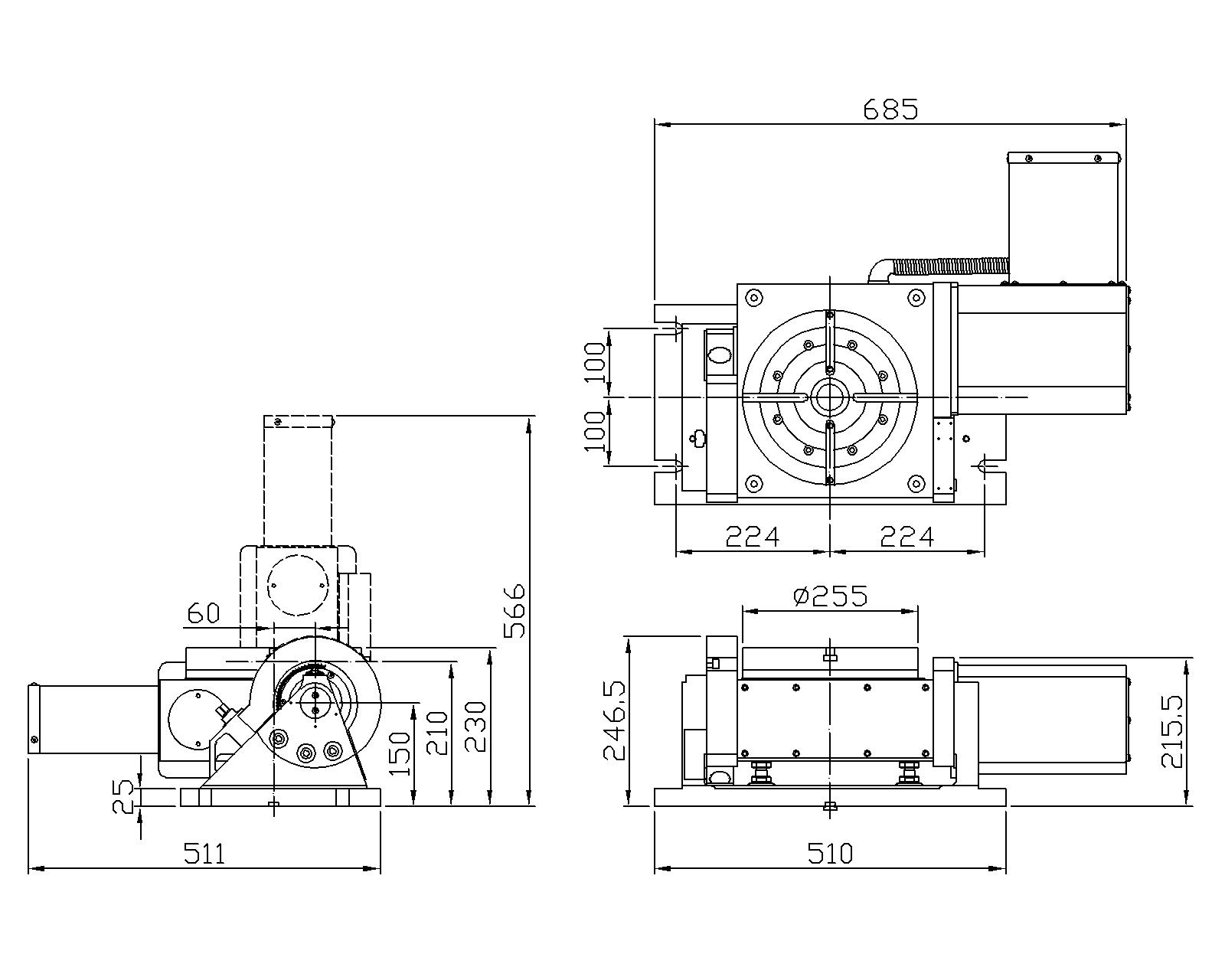

TMRNC-255

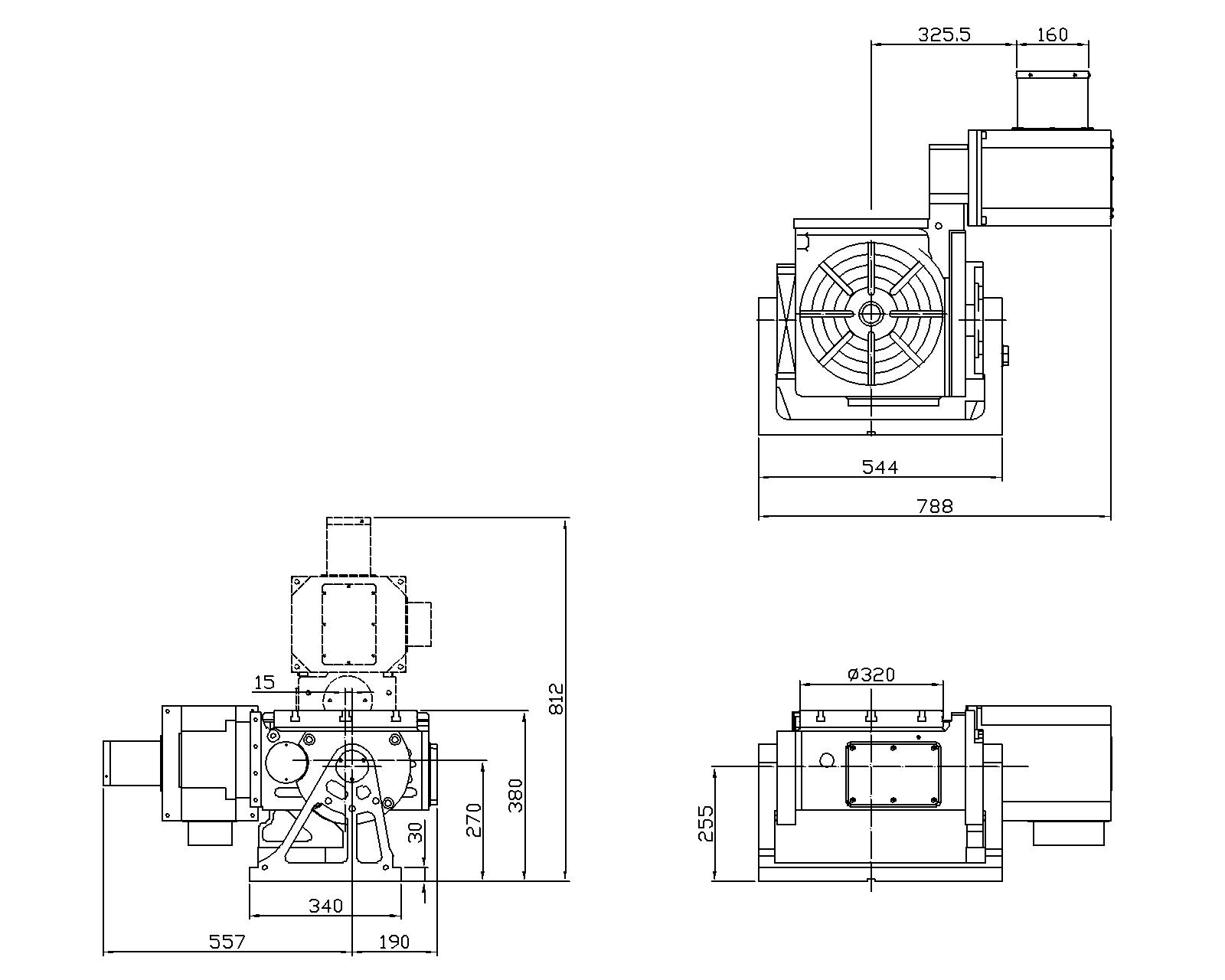

TMRNC-320

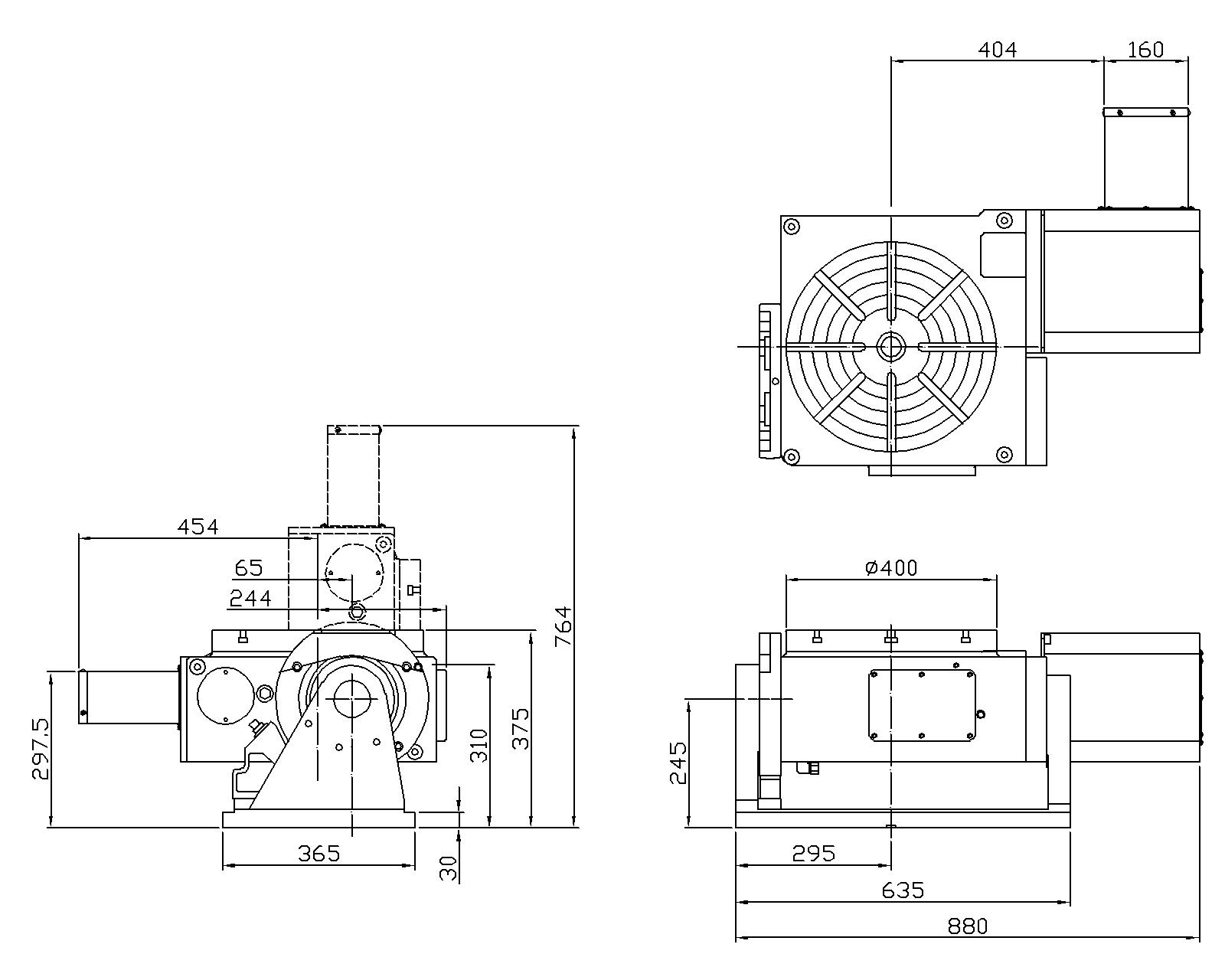

TMRNC-400
