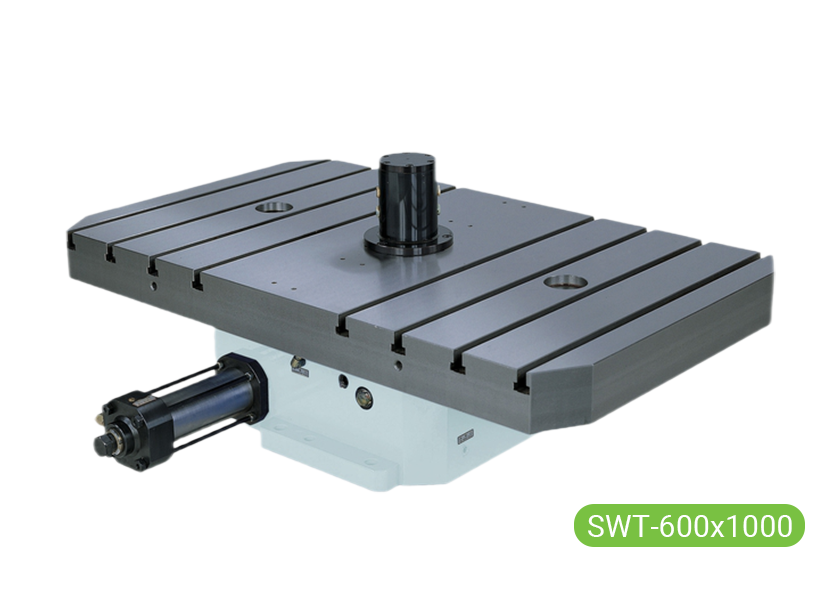

Hydraulic Index Table
SWT - 600X1000 • 700X910
Feature
  • Customized table.
  • Driven by hydraulic.
  • Other models are available, contact us for more details.
  • Gear coupling position.

Exclusive 3-pieces coupling

  • SWT
    • -
  • 600 x 1000
  1. Exchanging 2-location
  2. Table size
Specifications / Model Unit SWT-600x1000 SWT-700x910
Worktable Diameter mm 600x1000 700x910
Overall Height mm 260 260
Center Bore Diameter mm 90H6 90H6
Through-Hole Diameter mm 41 41
Index Numbers 　 2 Fixed Index
Indexing Accuracy sec. ±5"
Rotating Direction 　 Clockwise And counterclockwise
Turntable rotating torque kgf-m 80 80
Allowable Instant Inertia
(GD2=W•Da2/2(kgm2)		 kg/m2 180 180
Clamping Force N (kgf) 3970 3970
Pressure (Clamping System)
 kg/cm2 35 35
Locking Method   Horiz. Table Top Face Upward
Allowable Load Capacity Horizontal
kg 700 700
MAX.Thrust Load
(Table is clamped)		 Axial force
N (kgf) 38906(3970) 38906(3970)
Radial moment
N.m (kgf.m) 5390(550) 5390(550)
Tilting moment
N.m (kgf.m) 13994(1428) 13994(1428)
Net Weight kg － －
Dimensions
Dimensions

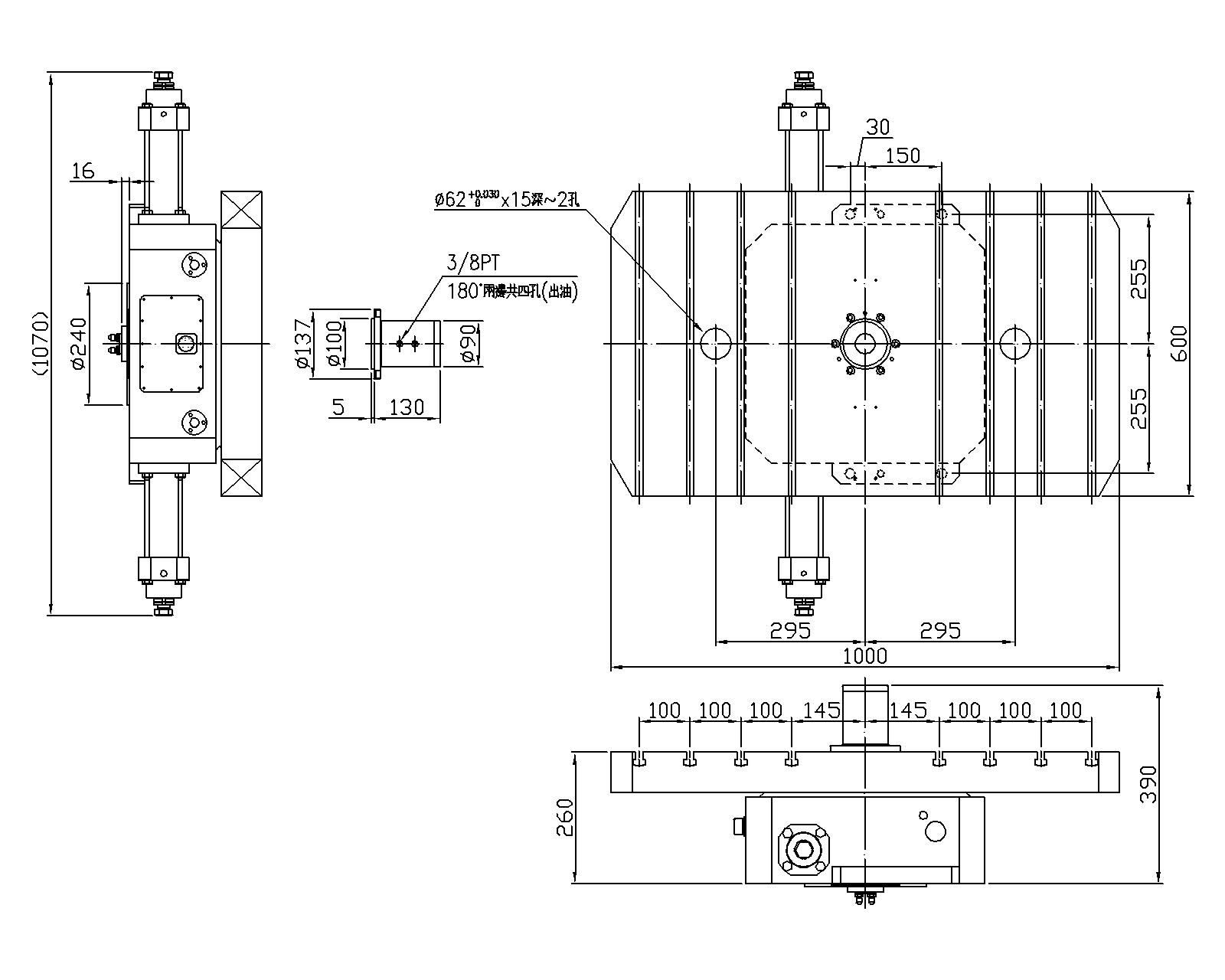

SWT-600X1000

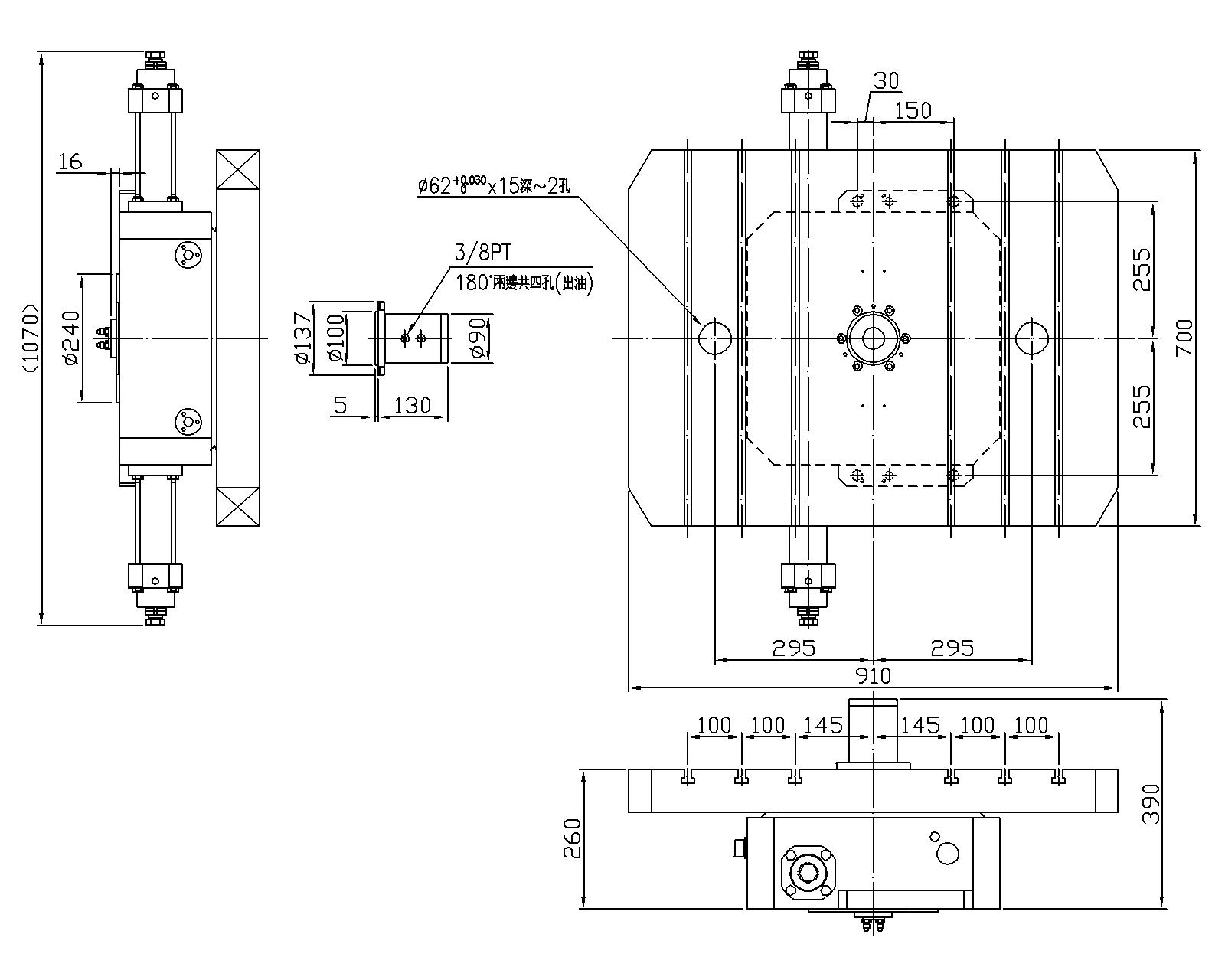

SWT-700X910
