Tailstock

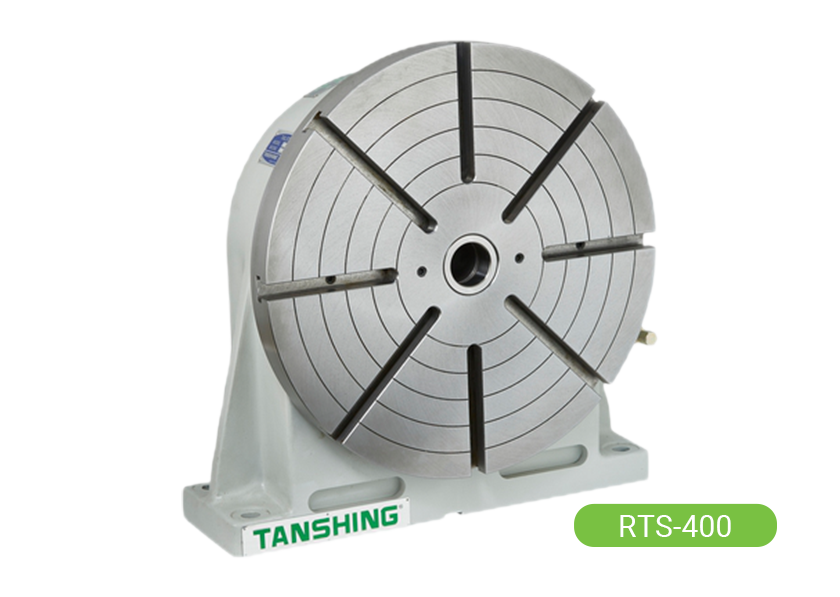

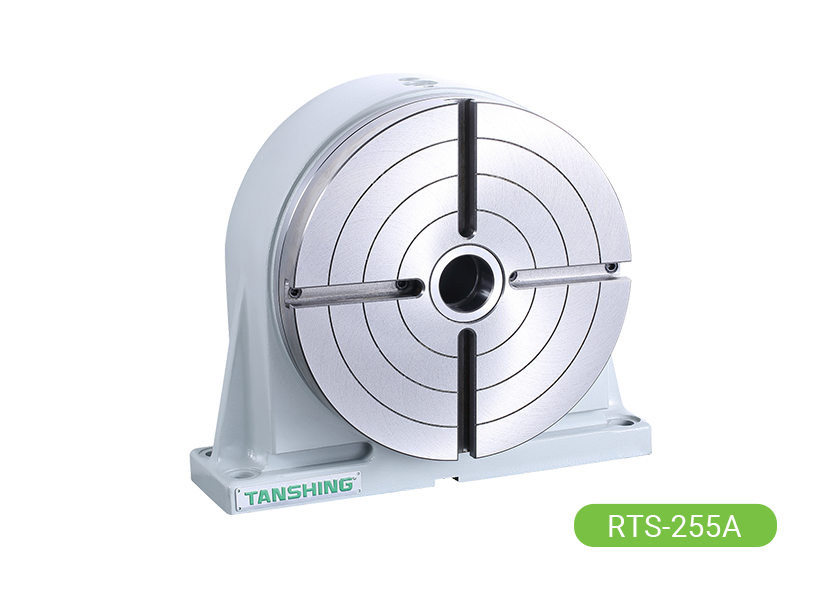

RTS - 125 • 170C • 210C • 255A • 320 • 400 • 500A • 630A



  • RTS
    • -
  • 170
  • □

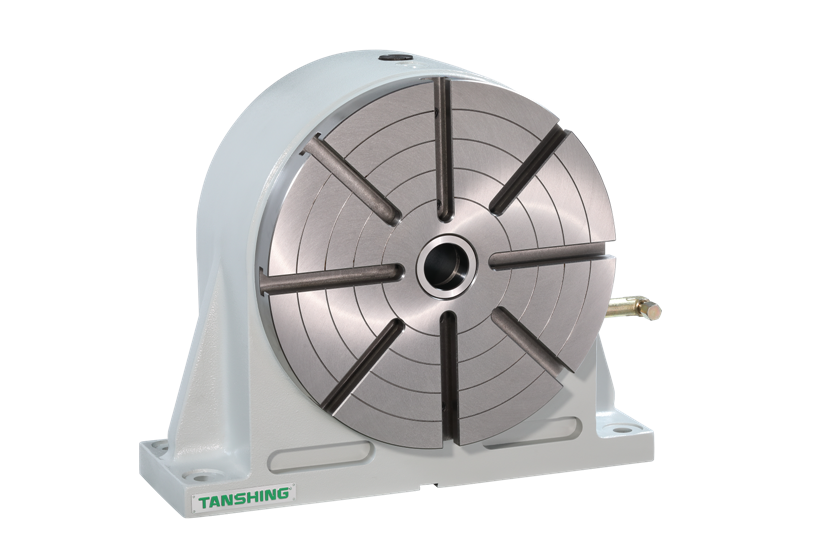

  1. RTS：Rotary tailstock
  2. Table size
  3. Version
Specifications / Model Unit RTS-125 RTS-170C RTS-210C RTS-255A RTS-320 RTS-400 RTS-500A RTS-630A
A：Worktable Diameter mm Ø125 Ø170 Ø210 Ø255 Ø320 Ø400 Ø500 Ø630
B：Center Height In Vertical mm 110 135 160 160 210 255 310 400
C：Overroll Height In Vertical mm 210 225 265 292.5 375 455 565 715
D：Center Bore Diameter mm Ø25H7 Ø35H7 Ø45H7 Ø40H7 Ø40H7 Ø40H7 Ø50H7 Ø50H7
E：Width Of T-Slot mm 12H7 12H7 12H7 12H7 14H7 14H7 18H7 18H7
F：Width Of Guide Block mm 14h7 18h7 18h7 18h7 18h7 18h7 18h7 18h7
G：Base Length mm 133.5 240 240 335 450 450 660 660
H ：Base Width mm 147 97 97 97 145 145 197 197
 I  ：Total Width mm 152 118.1 118.1 147 190 190 257 277
J：Through-Hole Diameter mm Ø13 Ø35 Ø35 Ø40 Ø40 Ø40 Ø50 Ø50
K mm - 67 67 60 101 101 145 145
L mm - 15 15 18.5 22 22 26 26
M mm - 100 100 150 200 200 300 300
Clamping Torque N.m (kgf.m) - - - 490
(50)		 833
(85)		 833
(85)		 2450
(250)		 2450
(250)
Net Weight  kg 22 25 28 56 107 125 340 360
Dimensions
Dimensions

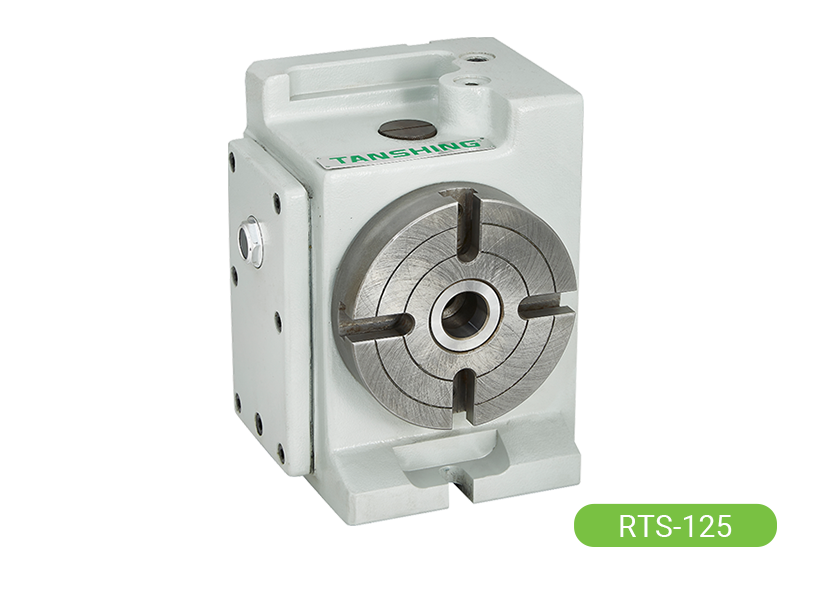

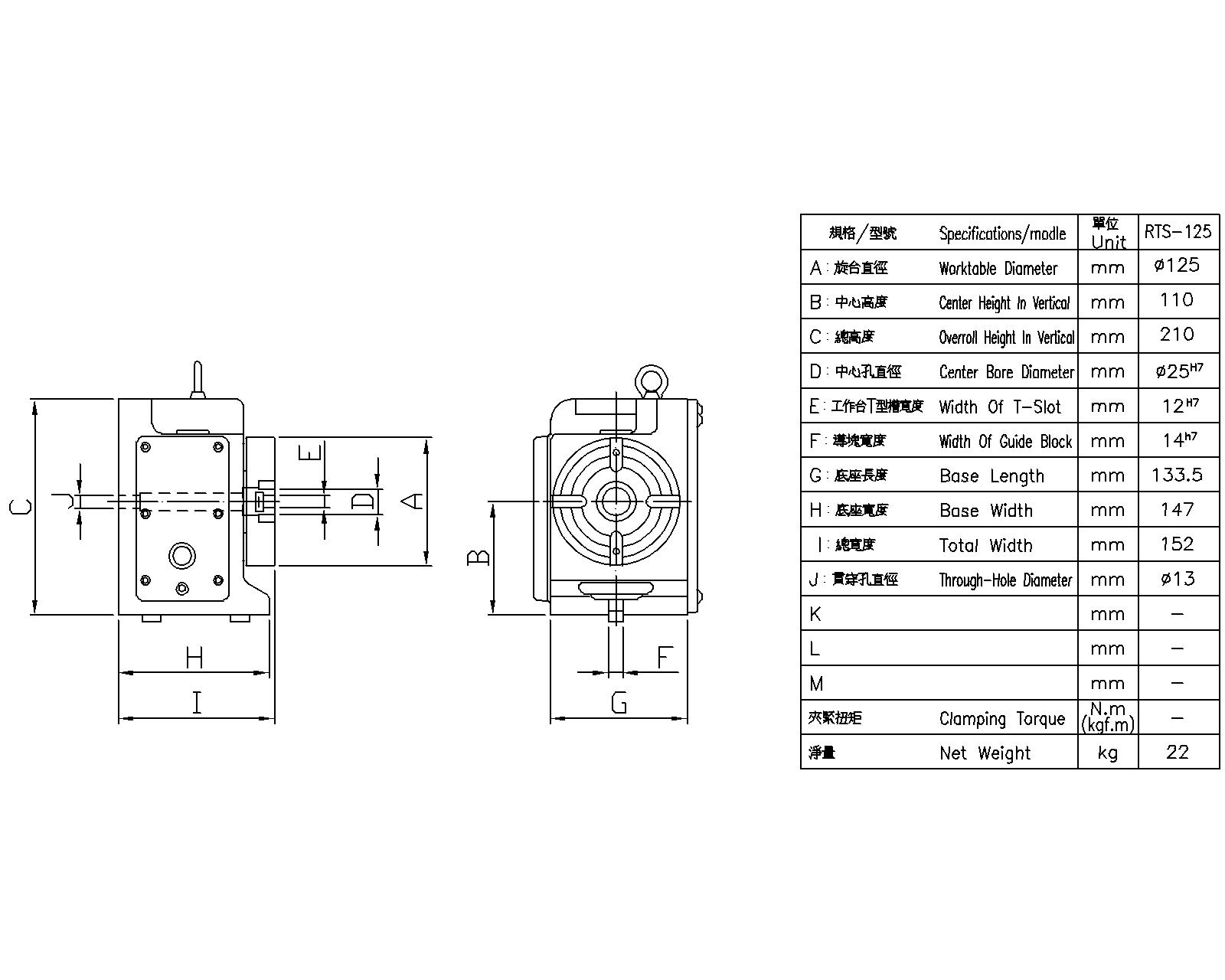

RTS-125

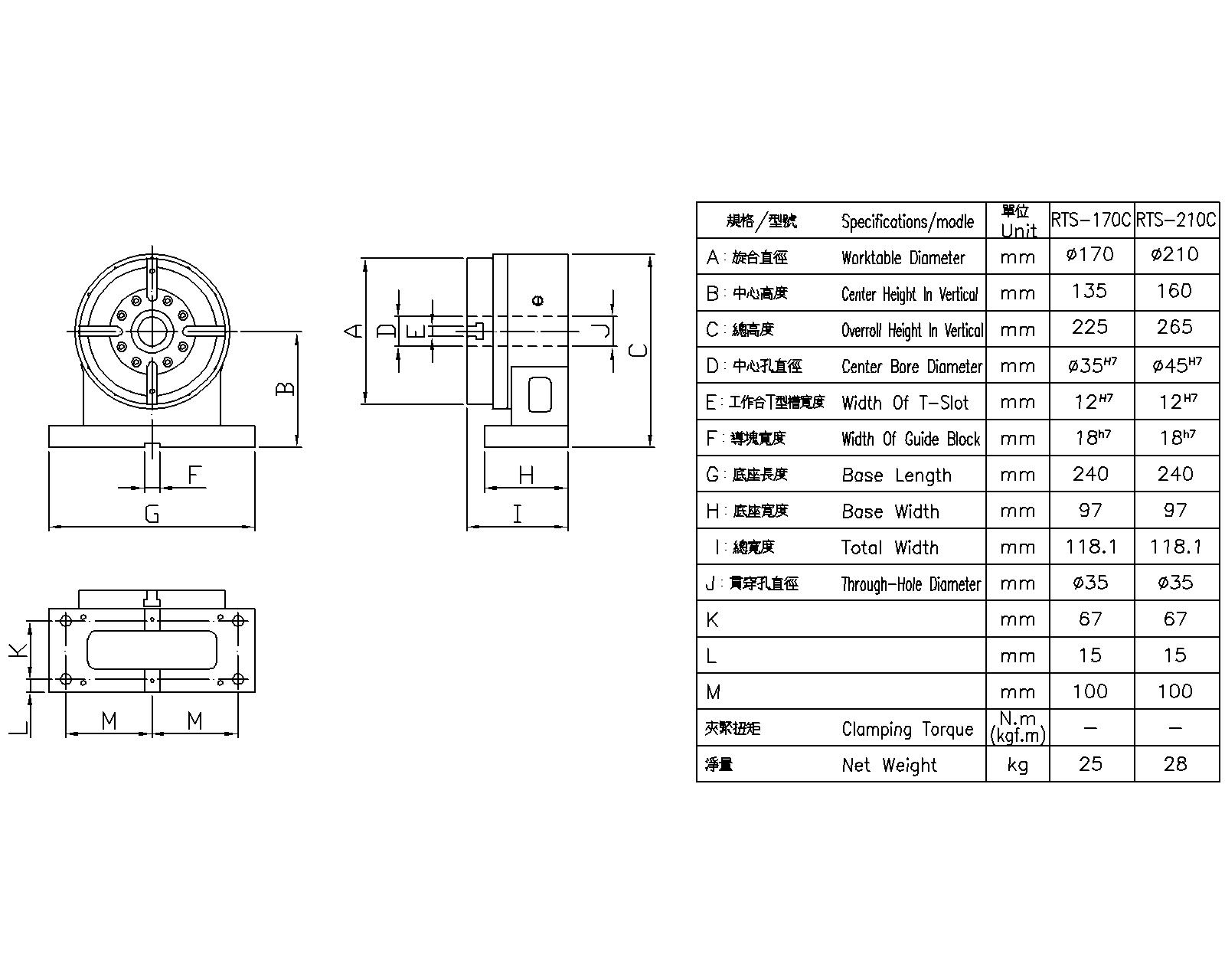

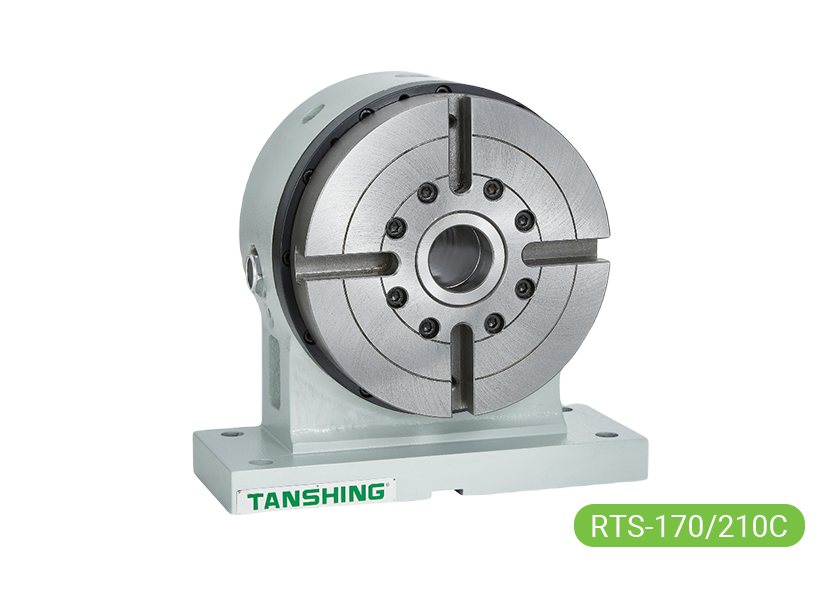

RTS-170C/210C

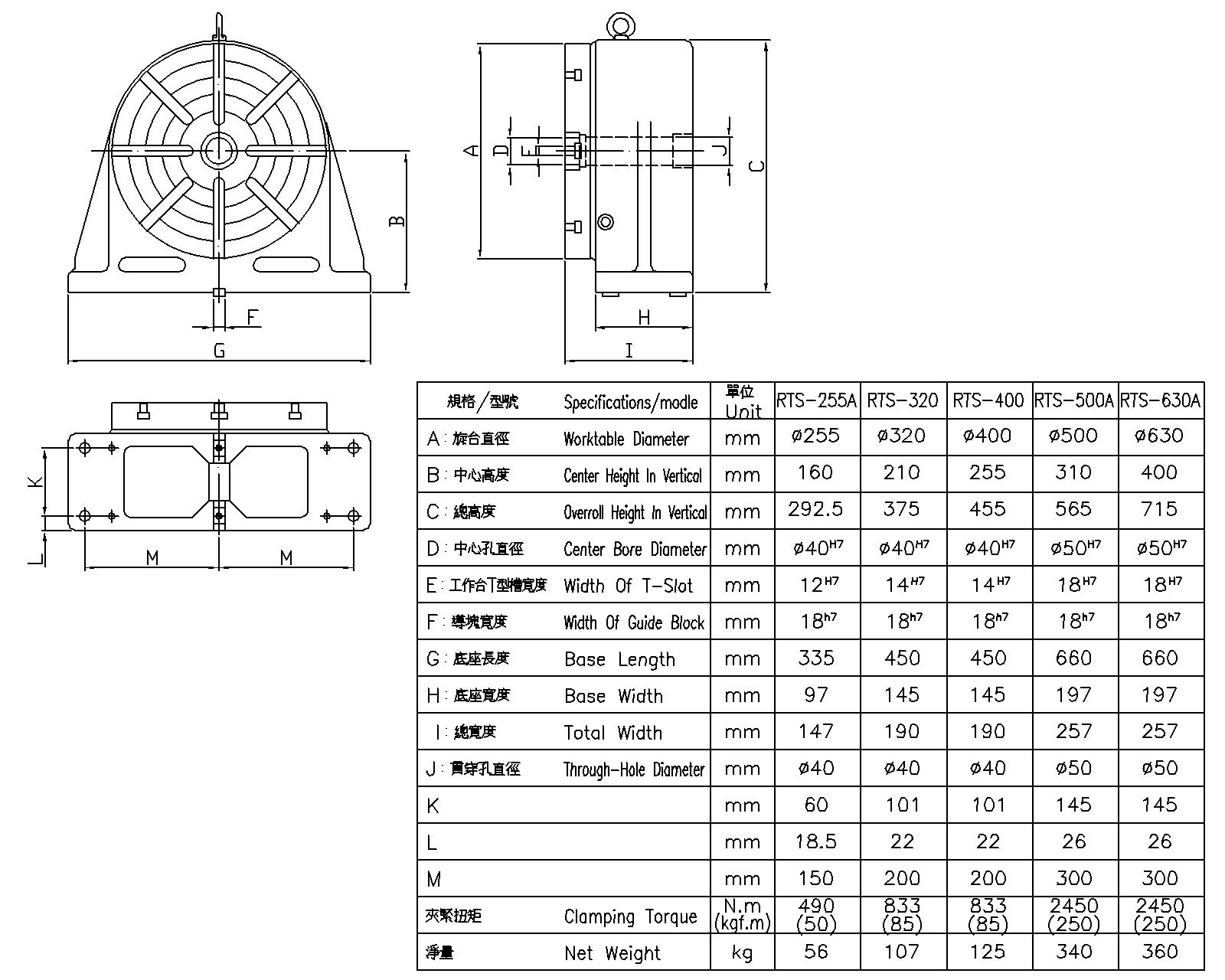

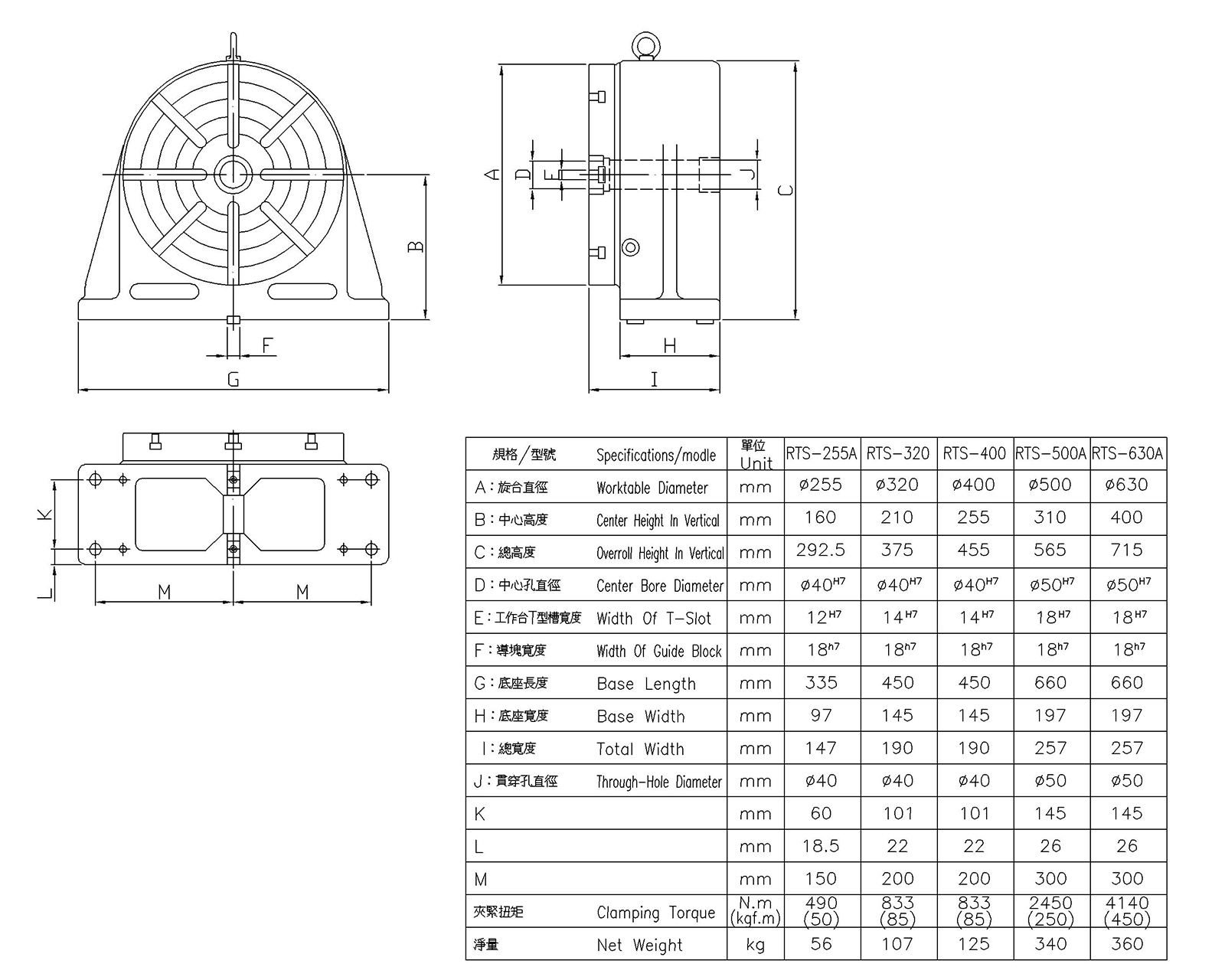

RTS-255A/320/400/500A/630A
