CNC Rotary Table
RNC - 50 • 100 • A115C (2W/3W/4W)
Feature
  • Pneumatic locking is adopted, and the workpiece clamping pressure can be adjusted by air pressure.
  • Suitable for drilling and light milling.
  • Air pressure collet chucks can use various types of 5C collet.
  • Ideal choice for holding small parts.
  • Clamping parts using stand 5C collet.
  • Exclusive dual lead wormdrive.

PC-10 Pneumatic Closer

  • RNC
    • -
  • A
  • 115C
    • -
  • □
  1. Collet type
  2. Version
  3. Center Height：110mm
  4. Collet：Stand 5C
  5. None：Manual
    S：Single cylinder
    D：Dual cylinders
Specifications / Model Unit RNC-50 RNC-100 RNC-A115C
Worktable Diameter mm Ø48 Ø100 －
Table Height Horizontal mm 83 137 －
Center Height Vertical mm 80 110 110
Center Bore Diameter mm Ø20H7 Dep.10 Ø25H7 Dep.16 －
Width Of T-Slot mm － 10H7 －
Collets   － － Standard 5C
(Max. Gripping Dia. 26mm)
Through-Hole Diameter mm 12h7 14h7 14h7
Number Of Worm Gear Teeth   48 72 48
Minimum Input Increment deg. 0.001° 0.001° 0.001°
Indexing Accuracy sec. Max. 60" Max. 60" ±30"
Repeatability sec. 4" 4" －
Servo Motor
(Model As Required)		 FANUC βiS 1 / 400w αiF 1 / 500w αiF 2 / 750w
MITSUBISHI － － HF/HG-75S / 750w
SIEMENS 1FK7042 1FK7042 1FK7042
HEIDENHAIN QSY-96A QSY-96A QSY-96A
Speed Reduction Ratio 1/48 1/48 1/48
Max. Table Rotation Speed r.p.m 62.5 62.5 41.6
Allowable Turntable Torque N.m (kgf.m) 40(4.08) 80(8.2) 40(4.08)
Pressure (Clamping System) kg/cm2 － Standard None/Optional 5
(Air Pressure)		 －
Clamping Torque N.m (kgf.m) － Standard None/Optional 80(8.2) －
Allowable Load Capacity Vertical
kg 25 50 25
Horizontal
kg 50 100 -
With Tail-Stock
kg 50 100 50
MAX.Thrust Load
(Table is clamped)		 Axial force
N (kgf) 2940(300) 5880(600) 2940(300)
Radial moment
N.m (kgf.m) 40(4.08) 80(8.2) 40(4.08)
Tilting moment
N.m (kgf.m) 78(7.95) 156(15.9) 78(7.95)
Allowable Inertia Force J=W.D2/8
kg.m2
(kg.cm.sec2)		 0.02
(0.16)		 0.13
(1.28)		 0.01
(0.08)
Net Weight (Motor Excluded) kg 20 25 24（Manually）
Dimensions

Note：

  1. There are RNC-50(Table diameter Ø48mm) and RNC-100(Table diameter Ø100mm) model, please contact us for drawing if necessity.
Dimensions

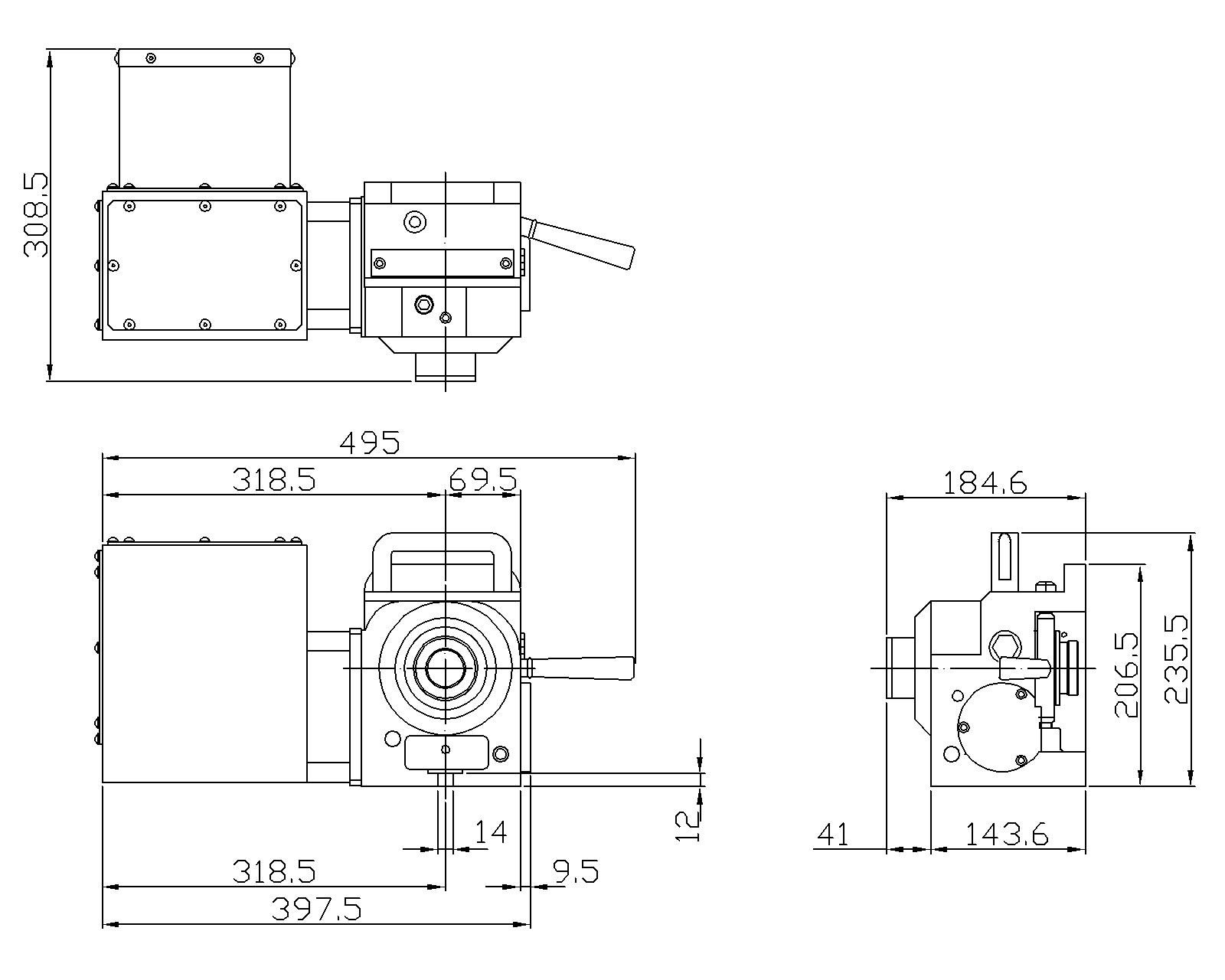

RNC-A115C

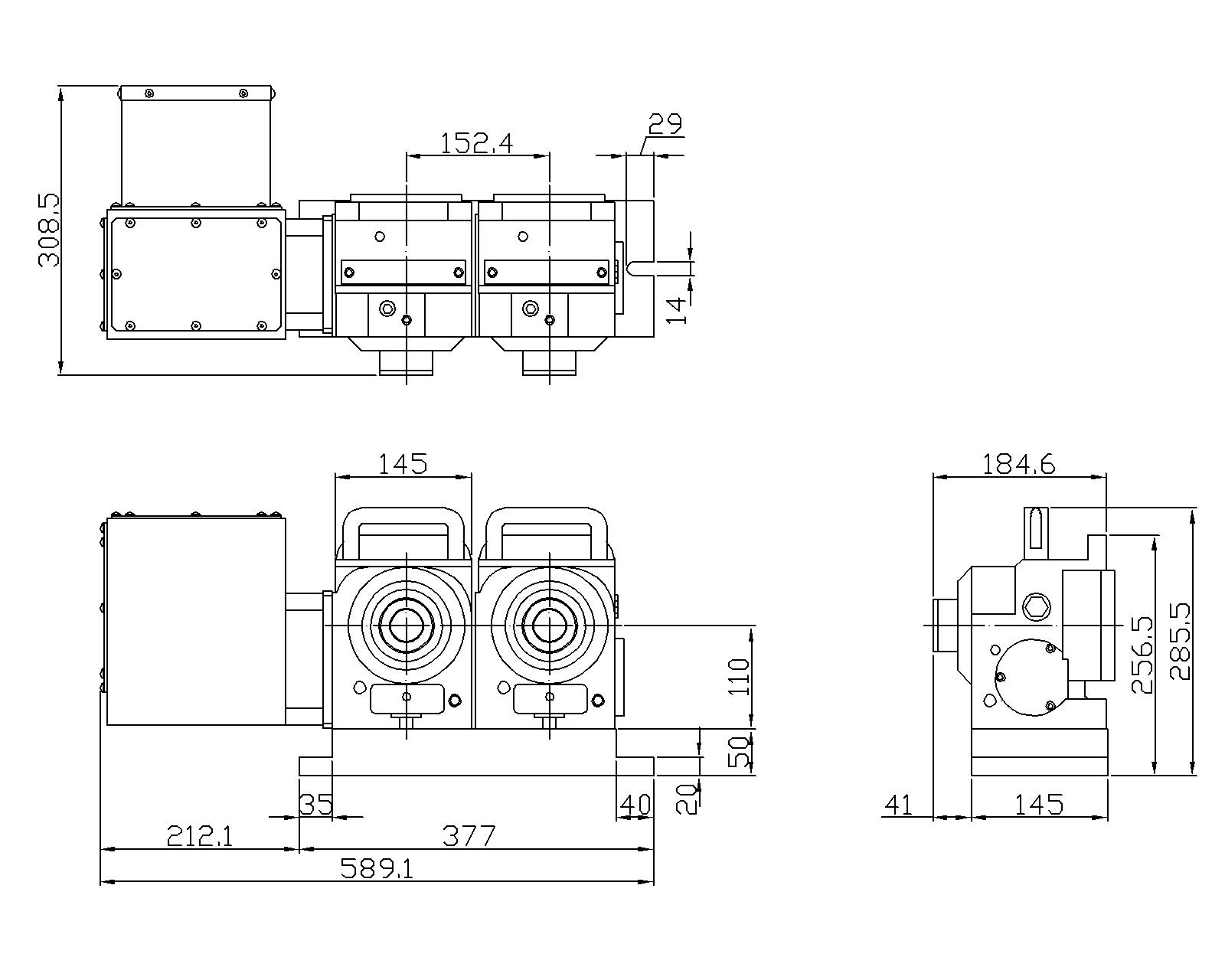

RNC-A115C-S-2W

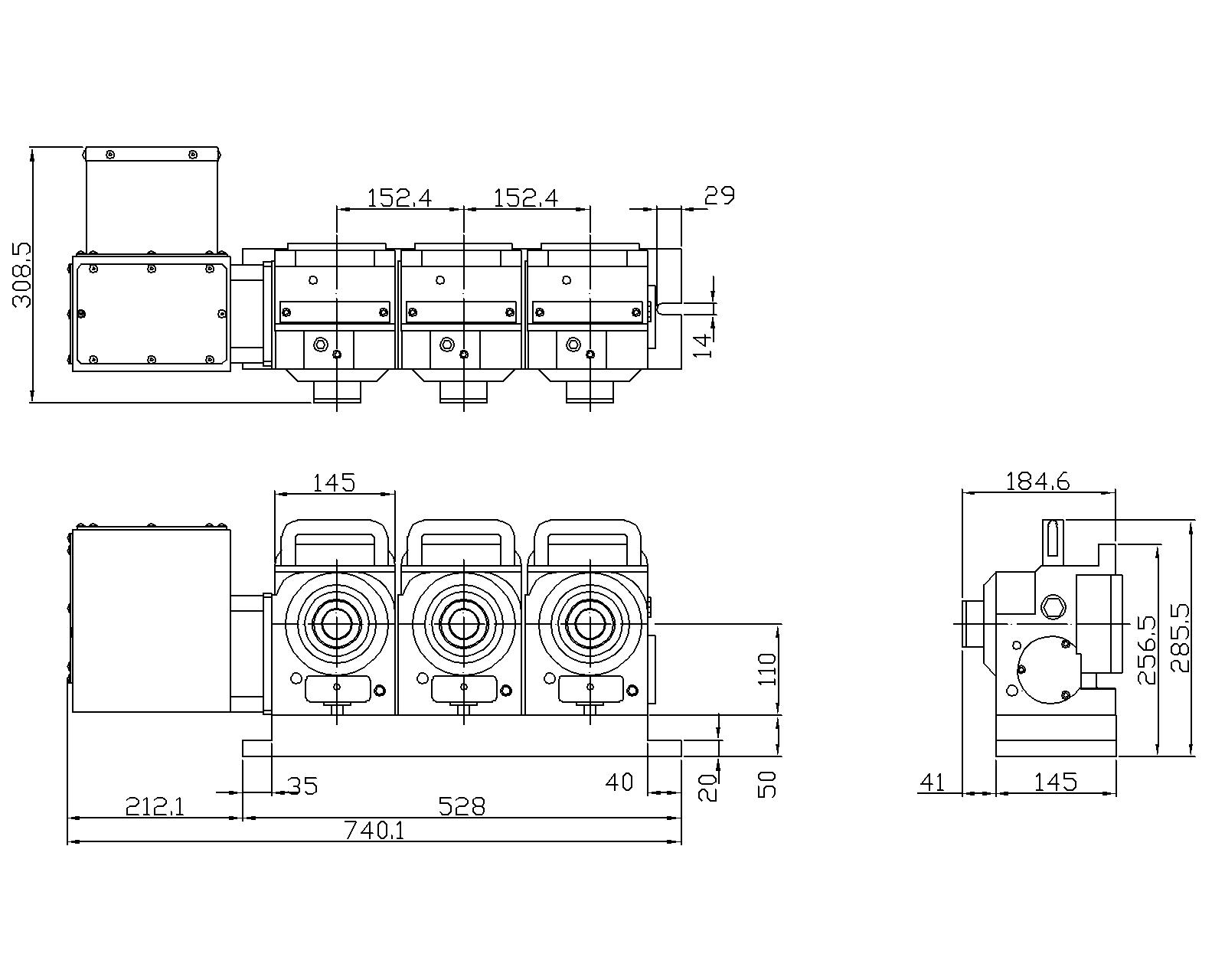

RNC-A115C-S-3W

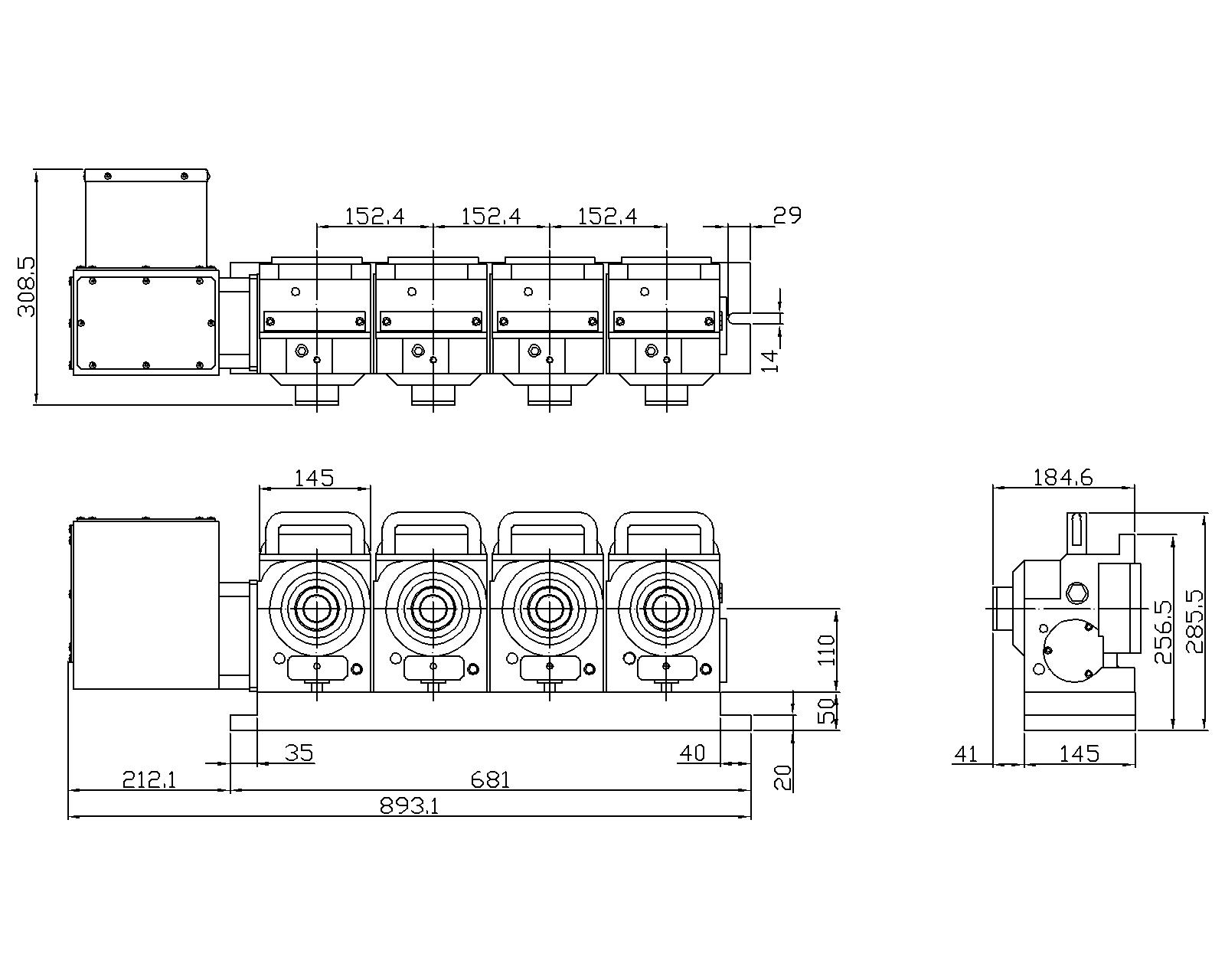

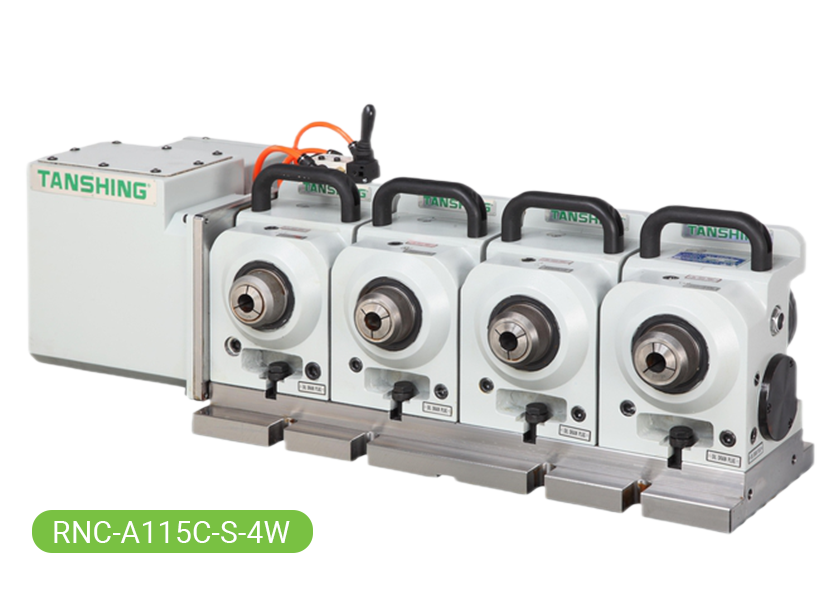

RNC-A115C-S-4W
