Hydraulic Index Table
MIHC - 340H • 470H • 600H • 800H
Feature
  • Driven by hydraulic.
  • Clockwise & counter-clockwise rotation.
  • Indexing accuracy ±5".
  • Exclusive 3-piece coupling .

Exclusive 3-piece coupling

  • M
  • I
  • HC
    • -
  • 340
  • □
  1. Hydraulic system
  2. Indexing
  3. Hydraulic control system
  4. Table diameter
  5. V：Vertical
    H：Horizontal
Specifications / Model Unit MIHC-340H MIHC-470H MIHC-600H MIHC-800H
Worktable Diameter mm Ø340 Ø470 Ø600 Ø800
Overall Height mm 210 240 260 305
Center Bore Diameter mm Ø65H6 Dep.11 Ø90H6 Dep.11 Ø110H6 Dep.18 Ø120H6 Dep.40
Through-Hole Diameter mm Ø31 Ø41 Ø53 Ø80
Index Numbers Standard 　 2,3,4,6,8,12Indexes (One Fixed Index )
Optional 　 5,9,10…Indexes (Customized)
Indexing Accuracy sec. ±5"
Repeatability sec. ±1"
Rotating Direction 　 CW.&CCW.Clockwise And Counterclockwise
Turntable rotating torque kgf-m 60 80 100 280
Allowable Instant Inertia
(GD2=W•Da2/2(kgm2)		 kg/m2 85 180 500 1200
Clamping Force N (kgf) 15288(1560) 38906(3970) 77576(7916) 110740(11300)
Pressure (Clamping System)
 kg/cm2 35 35 35 35
Rotating Time(90 degrees each with loosening clamping) s 2.5 3.5 6 10
Locking Method   Horiz.Table Top Face Upward
Allowable Load Capacity Horizontal
kg 500 700 1250 2400
MAX.Thrust Load
(Table is clamped)		 Axial force
N (kgf) 15288
(1560)		 38906
(3970)		 63190
(6448)		 94080
(9600)
Radial moment
N.m (kgf.m) 1421
(145)		 5390
(550)		 8232
(840)		 19110
(1950)
Tilting moment
N.m (kgf.m) 3254
(332)		 13994
(1428)		 194040
(1980)		 39200
(4000)
Net Weight kg 130 275 550 1000
Dimensions

Accuracy Standards

Item Unit MIHC-340H MIHC-470H MIHC-600H MIHC-800H
Runout In table center bore mm 0.02 0.02 0.02 0.02
Runout of table top during rotation mm 0.015 0.02 0.02 0.02
Flatness of table top mm 0.02 0.02 0.02 0.02
Parallelism of table top to table bottom mm 0.02 0.02 0.03 0.03
Dimensions

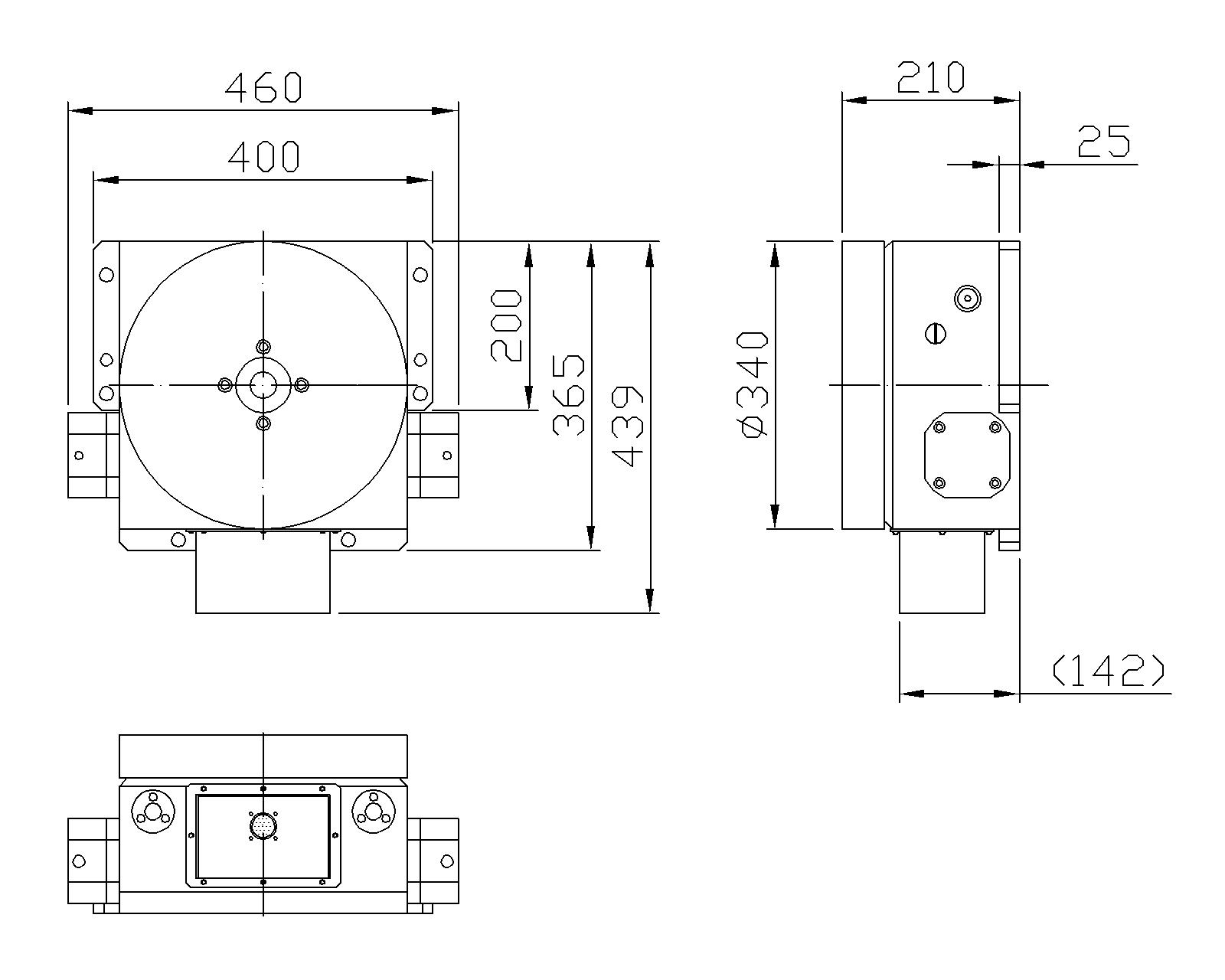

MIHC-340H

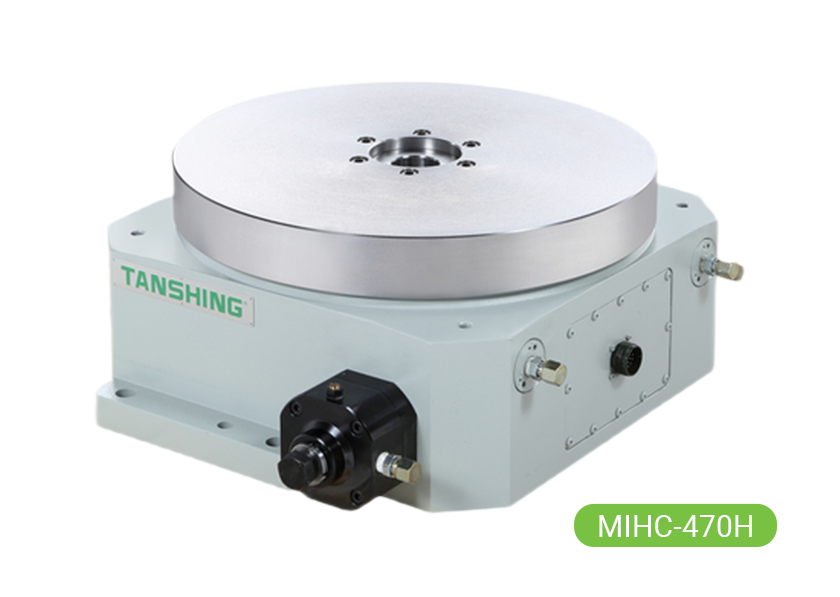

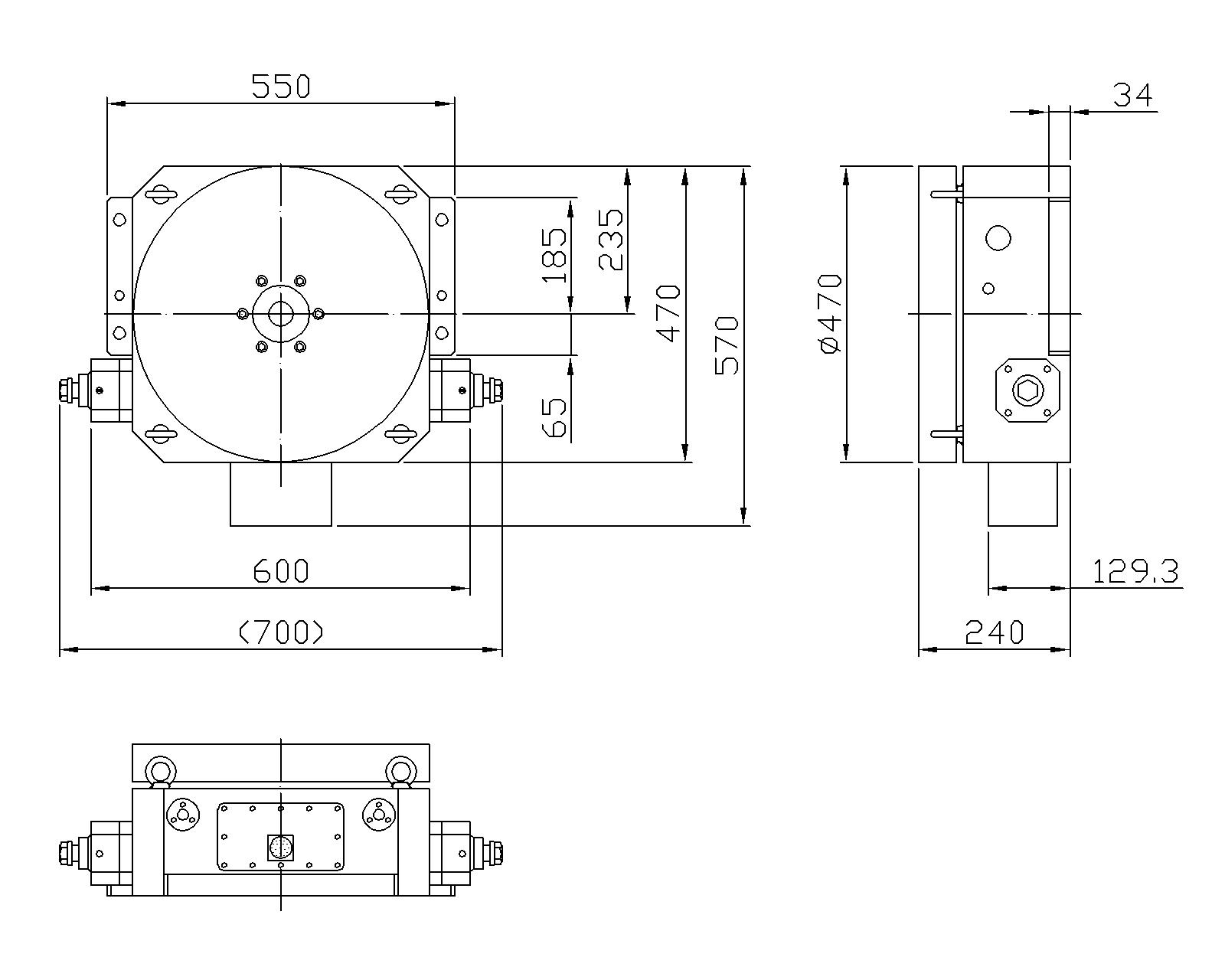

MIHC-470H

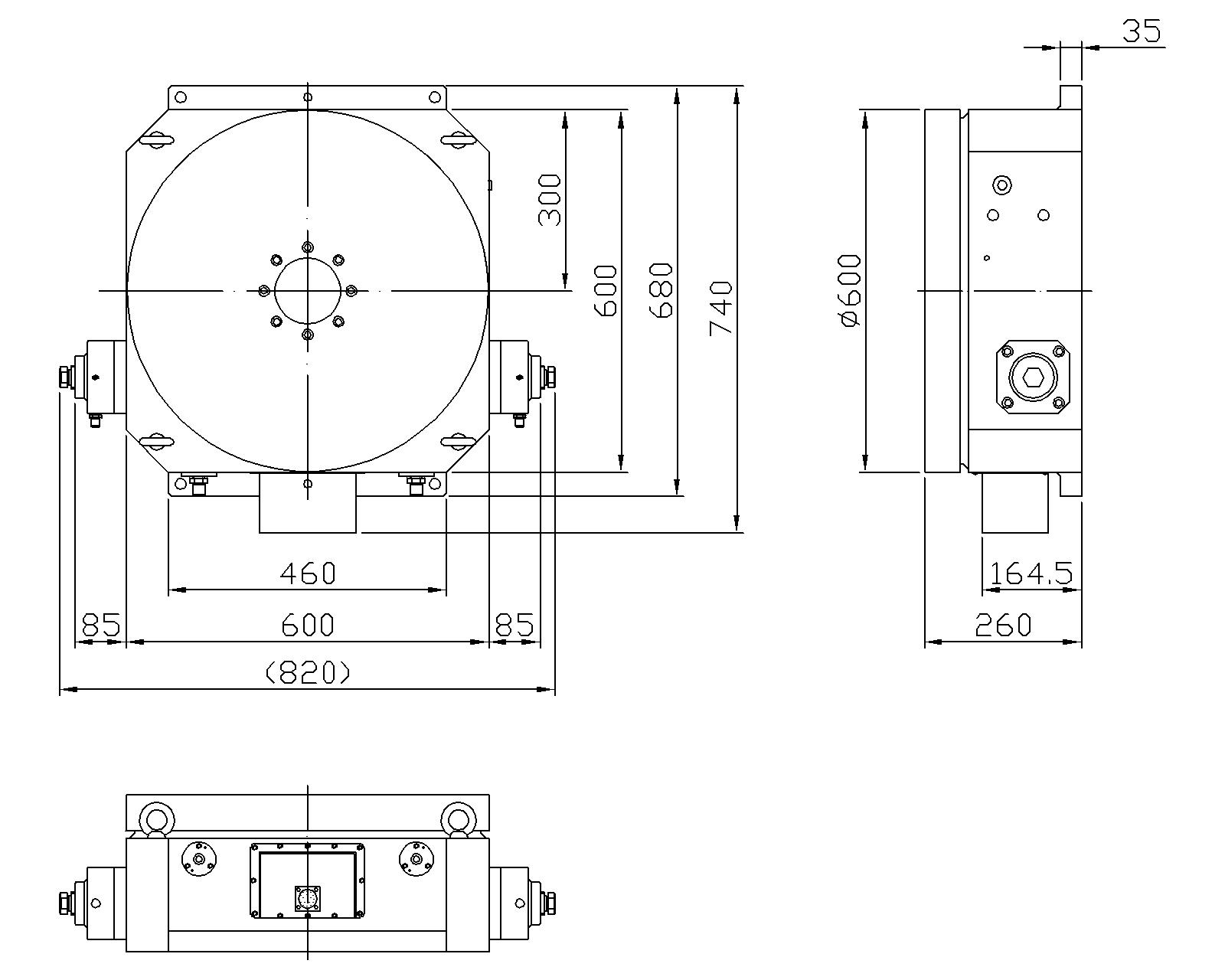

MIHC-600H

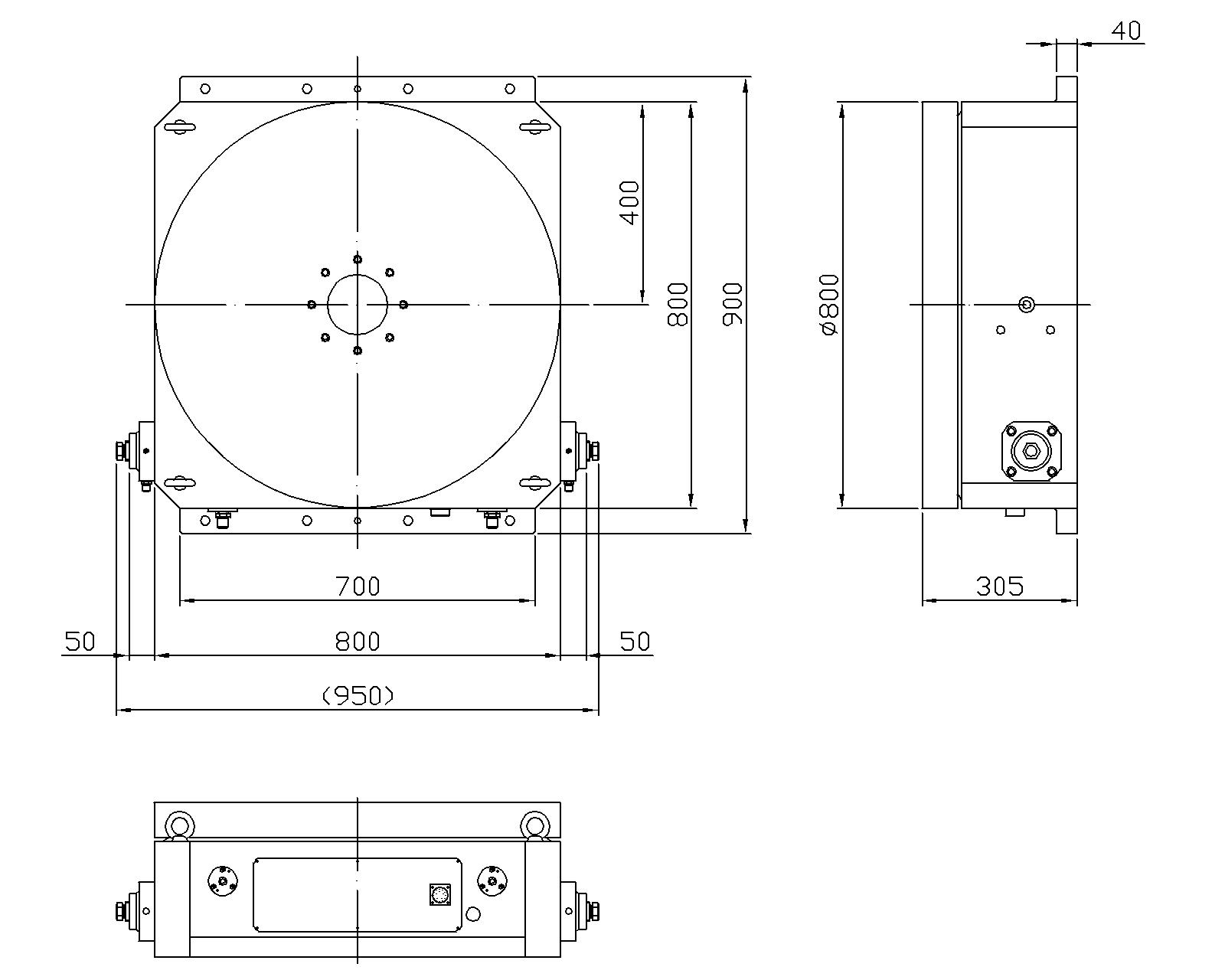

MIHC-800H
