Tailstock
TS/HTS/PTS/TTS/HTTS/PTTS Series
Feature

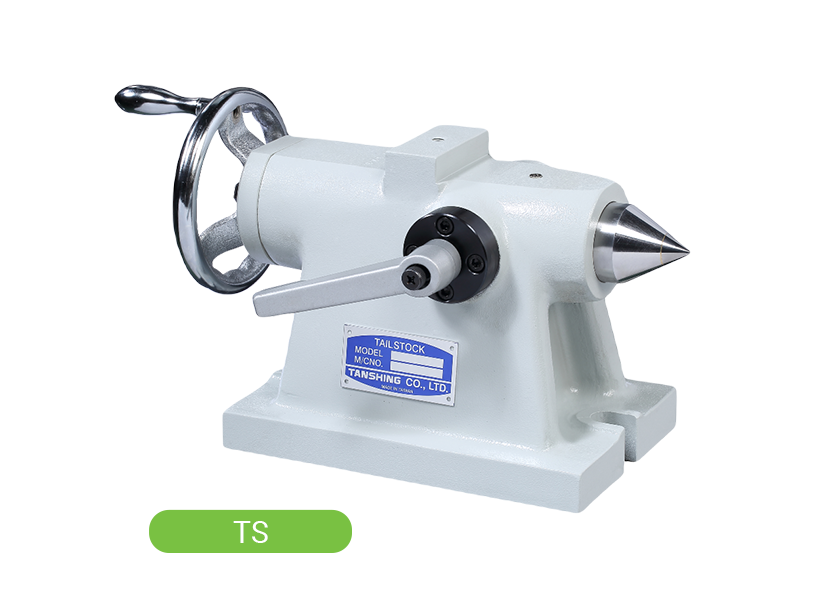

  • TS-Series Manual Tailstock

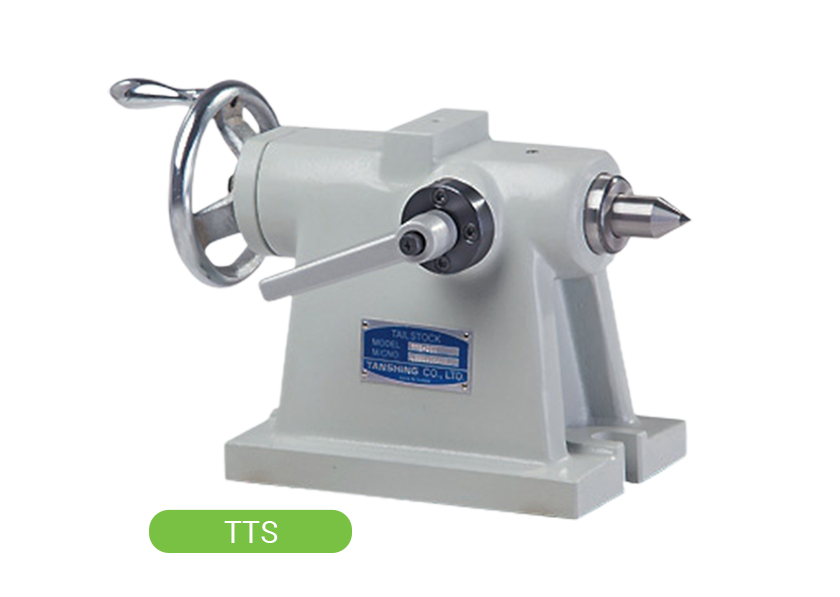

  • TTS-Series Manual Tailstock

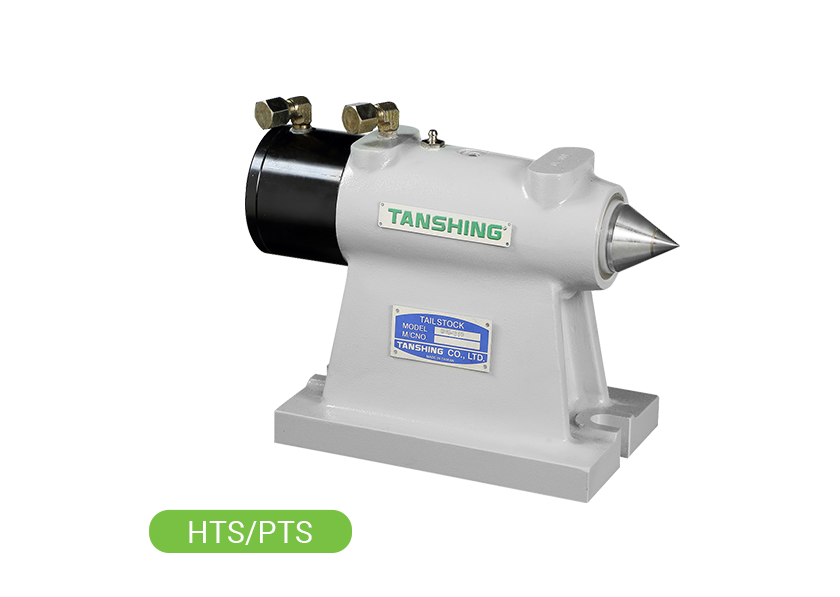

  • HTS-Series Hydraulic Tailstock
  • PTS-Series Pneumatic Tailstock

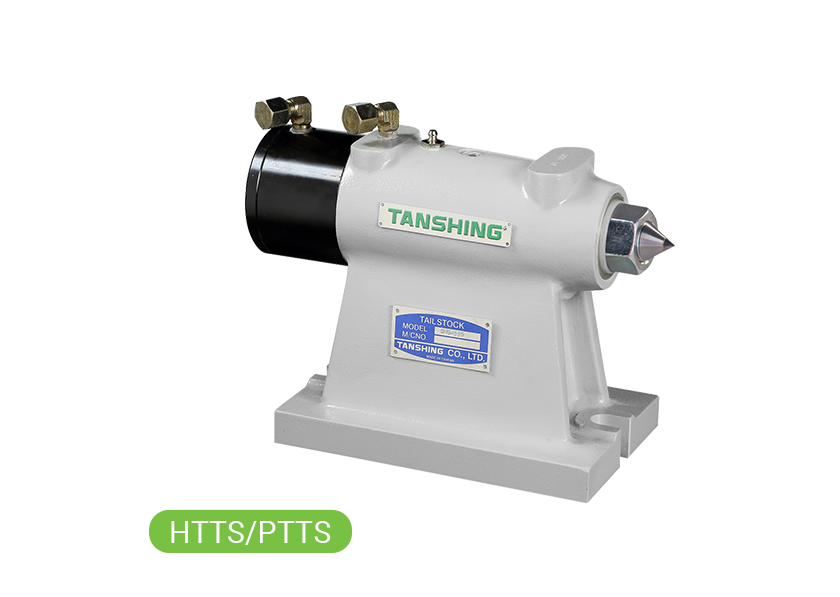

  • HTTS-Series Hydraulic Tailstock
  • PTTS-Series Pneumatic Tailstock
  • □
  • TTS
    • -
  • 125
  1. None：Manual tailstock
    H：Hydraulic tailstock
    P：Pneumatic tailstock
  2. TS：Unchangeable thimble
    TTS：Changeable thimble
  3. Table size

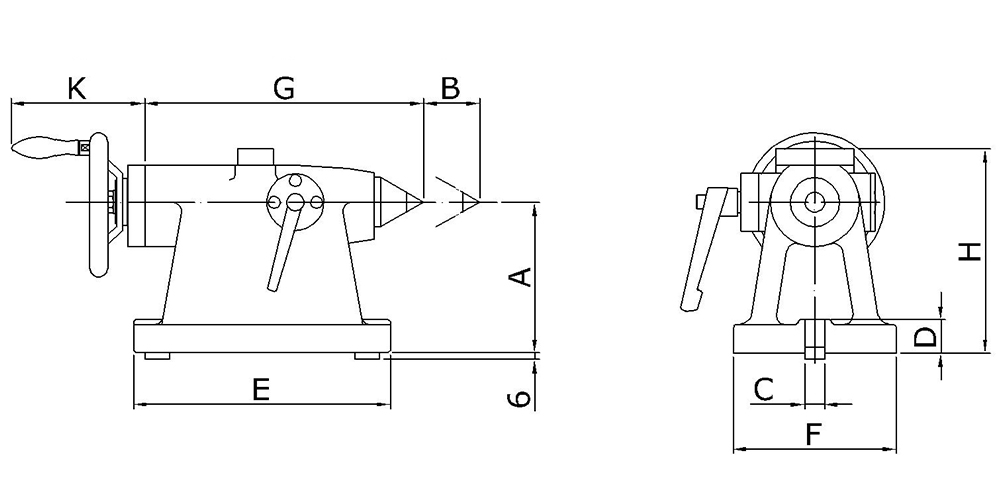

TS

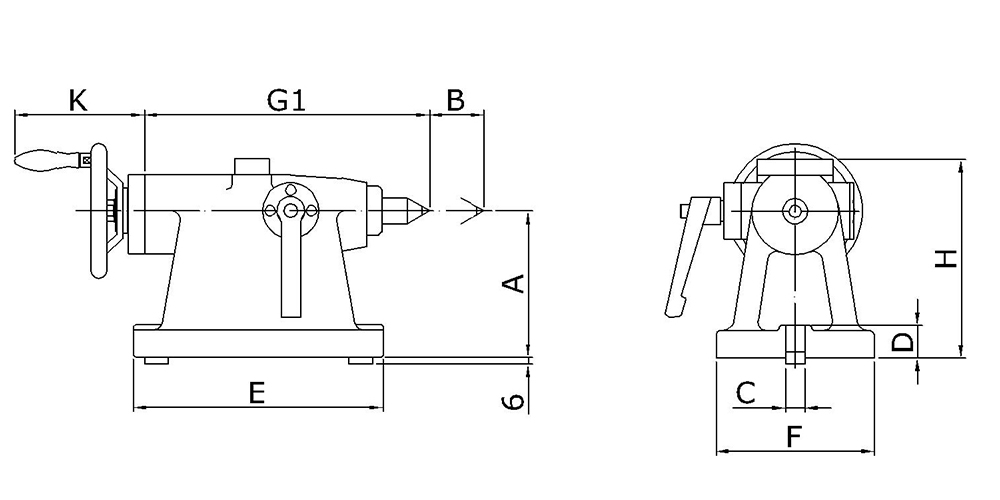

TTS

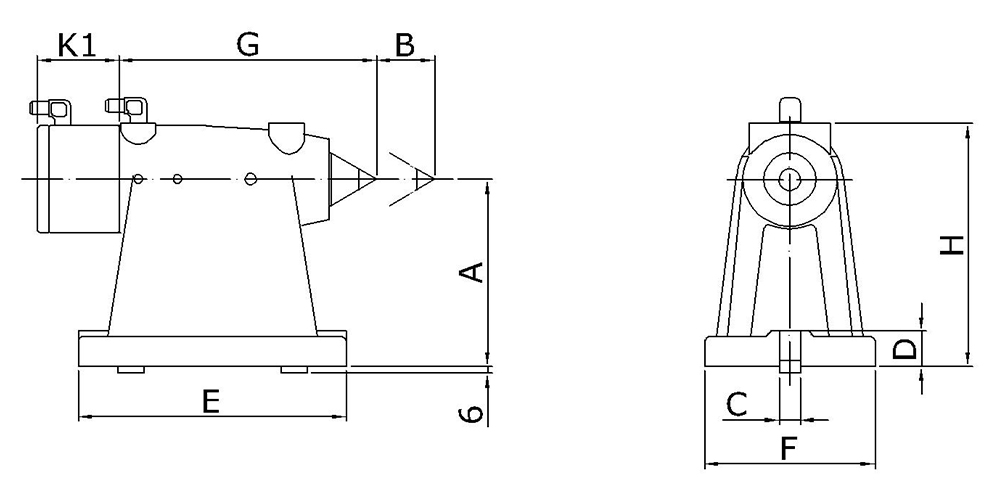

HTS/PTS

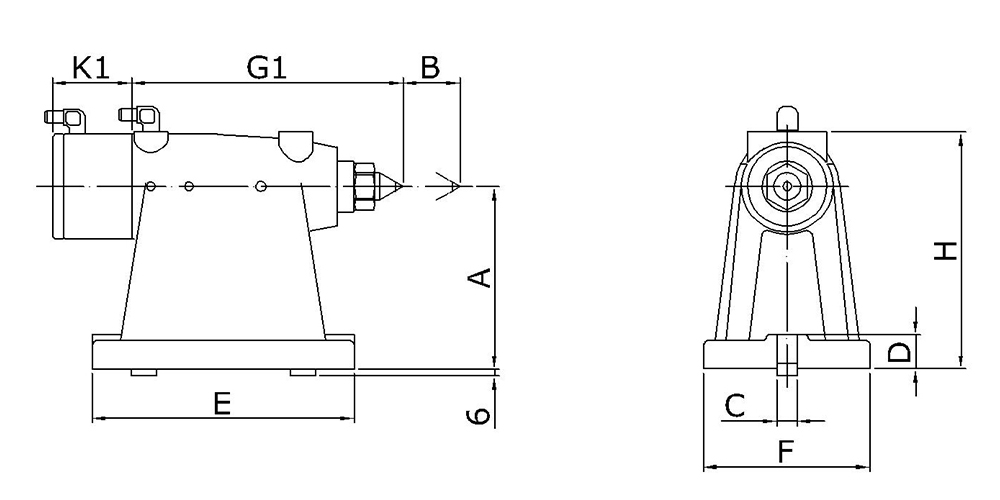

HTTS/PTTS

Unit：mm

Specifications / Model A B C D E F G G1 H K K1 Weight (kgs)
TS / TTS HTS / PTS / HTTS / PTTS
TS
TTS
HTS
PTS
HTTS
PTTS		 125 110 ※ 14 20 139 100 150 155 137 120.5 72 10 13
170 135 50 18 30 230 146 248 263 183 120.5 70 17 20
210/255 160 50 18 30 230 146 248 263 208 120.5 70 20 23
320 210 50 18 30 230 146 248 263 258 120.5 70 25 28
400 255 50 18 30 270 160 248 263 303 120.5 70 31 34
500 310 60 18 30 320 230 313 334 370 143.5 - 57 －
630 400 60 18 30 320 230 313 334 460 143.5 - 75 －

※Manual Tailstock stroke 30；Pneumatic / Hydraulic Tailstock stroke 50
